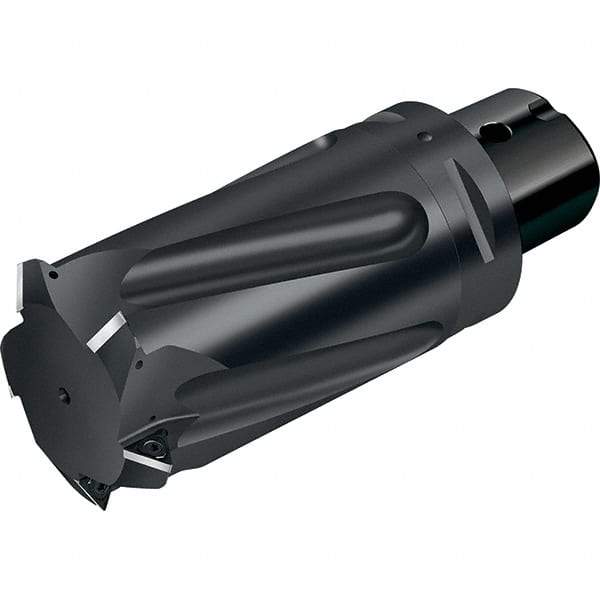

Walter - Indexable Thread Mills Cutting Diameter (mm): 73.00 Cutting Diameter (Decimal Inch): 2.8740
Item #: 11740651
Brand: Walter
Model #: 7356303
Exact Tooling IR#: 04
Product Specifications
Indexable Thread Mills; Cutting Diameter (mm): 73.00 ; Cutting Diameter (Decimal Inch): 2.8740 ; Maximum Hole Depth (mm): 125.00 ; Insert Style: P26300 ; Insert Size (Decimal Inch): 0.3190 ; Toolholder Style: T2713
| Cutting Diameter (mm) | 73.00 |
| Cutting Diameter (Decimal Inch) | 2.8740 |
| Maximum Hole Depth (mm) | 125.00 |
| Insert Style | P26300 |
| Insert Size (Decimal Inch) | 0.3190 |
| Toolholder Style | T2713 |
| Shank Diameter (mm) | 63.00 |
| Overall Length (mm) | 169.70 |
| Number of Threading Inserts | 5 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
