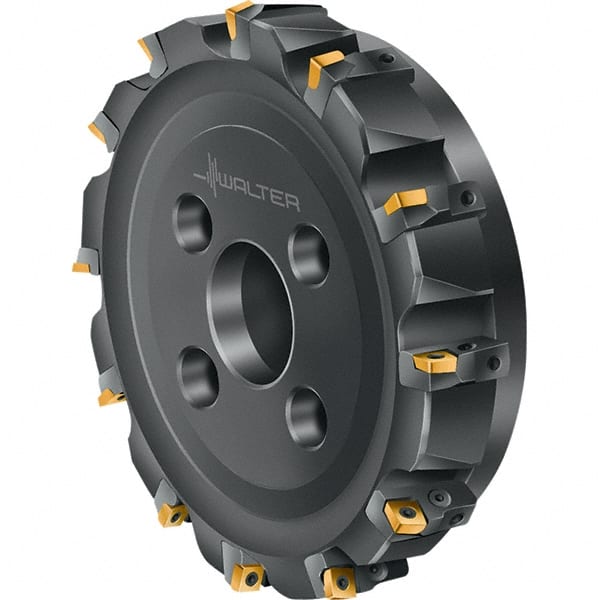

138mm Cut Diam, 40mm Arbor Hole Diam, Indexable Square-Shoulder Face Mill 15° Lead Angle
Item #: 11739935
Brand: Walter
Model #: 6835823
Product Specifications
Minimum Cutting Diameter (mm) | 114.93 |
Maximum Cutting Diameter (mm) | 138.00 |
Maximum Depth of Cut (mm) | 11.40 |
Arbor Hole Diameter (mm) | 40.00 |
Arbor Hole Diameter (Inch) | 40 |
Arbor Hole Diameter (Decimal Inch) | 40.0000 |
Compatible Insert Size Code | SD 1204 |
Cutter Style | F2010 |
Lead Angle | 15 |
Series | F2010 |
Overall Height (Mm - 5 Decimals) | 63.00 |
Tool Application | Facing |
Primary Workpiece Material | Universal |
Primary Workpiece Material Code | P; S; K; M; N |
Secondary Workpiece Material | Hard Material |
Secondary Workpiece Material Code | H; O |
Standards | ISO |
Coolant Through | No |
Number Of Cutter Inserts | 8 |
Number Of Flutes | 8 |
