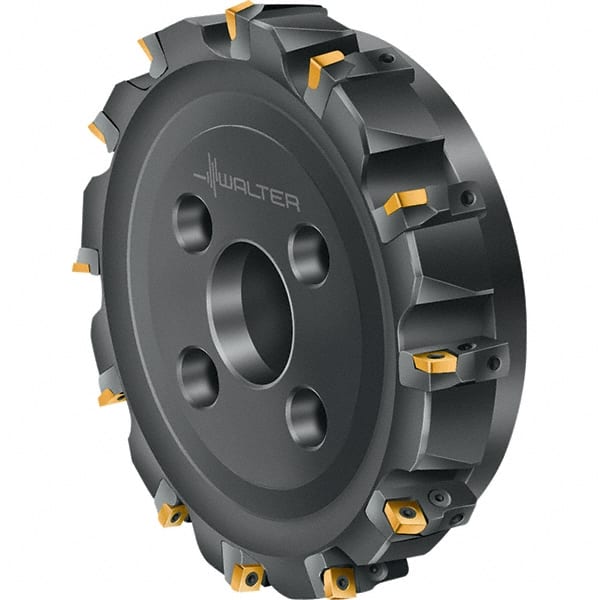

![113mm Cut Diam, 32mm Arbor Hole Diam, Indexable Square-Shoulder Face Mill 15° Lead Angle](http://exactindustrialsupply.com/cdn/shop/products/1174049-21_b4cded54-c89c-4a3b-86d1-23fe41561147_1024x1024.jpg?v=1675004968)
113mm Cut Diam, 32mm Arbor Hole Diam, Indexable Square-Shoulder Face Mill 15° Lead Angle
Item #: 11739620
Brand: Walter
Model #: 6835822
Product Specifications
Minimum Cutting Diameter (mm) | 89.93 |
Maximum Cutting Diameter (mm) | 113.00 |
Maximum Depth of Cut (mm) | 11.40 |
Arbor Hole Diameter (mm) | 32.00 |
Arbor Hole Diameter (Inch) | 32 |
Arbor Hole Diameter (Decimal Inch) | 32.0000 |
Compatible Insert Size Code | SD 1204 |
Cutter Style | F2010 |
Lead Angle | 15 |
Series | F2010 |
Overall Height (Mm - 5 Decimals) | 50.00 |
Tool Application | Facing |
Primary Workpiece Material | Universal |
Primary Workpiece Material Code | P; S; K; M; N |
Secondary Workpiece Material | Hard Material |
Secondary Workpiece Material Code | H; O |
Standards | ISO |
Coolant Through | No |
Number Of Cutter Inserts | 7 |
Number Of Flutes | 7 |
