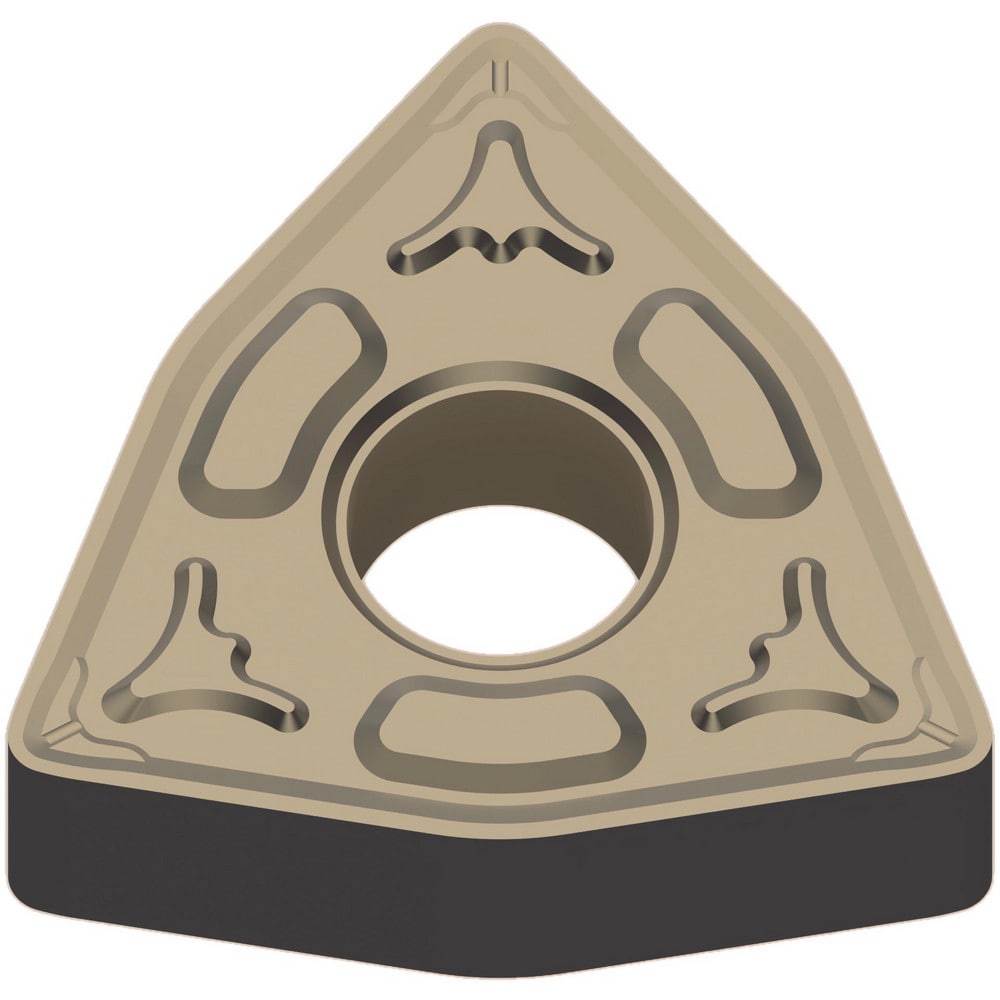

Turning Insert: WNMG433MW MC6025, Carbide
Item #: 06501092
Brand: Mitsubishi
Model #: 843833
Product Specifications
| ANSI Insert Code | WNMG433 |
| ISO Insert Code | WNMG080412 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 80 |
| Manufacturer Grade | MC6025 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Wiper - Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | MW |
| ANSI Size Code | 433 |
| ISO Size Code | 080412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 4 |
