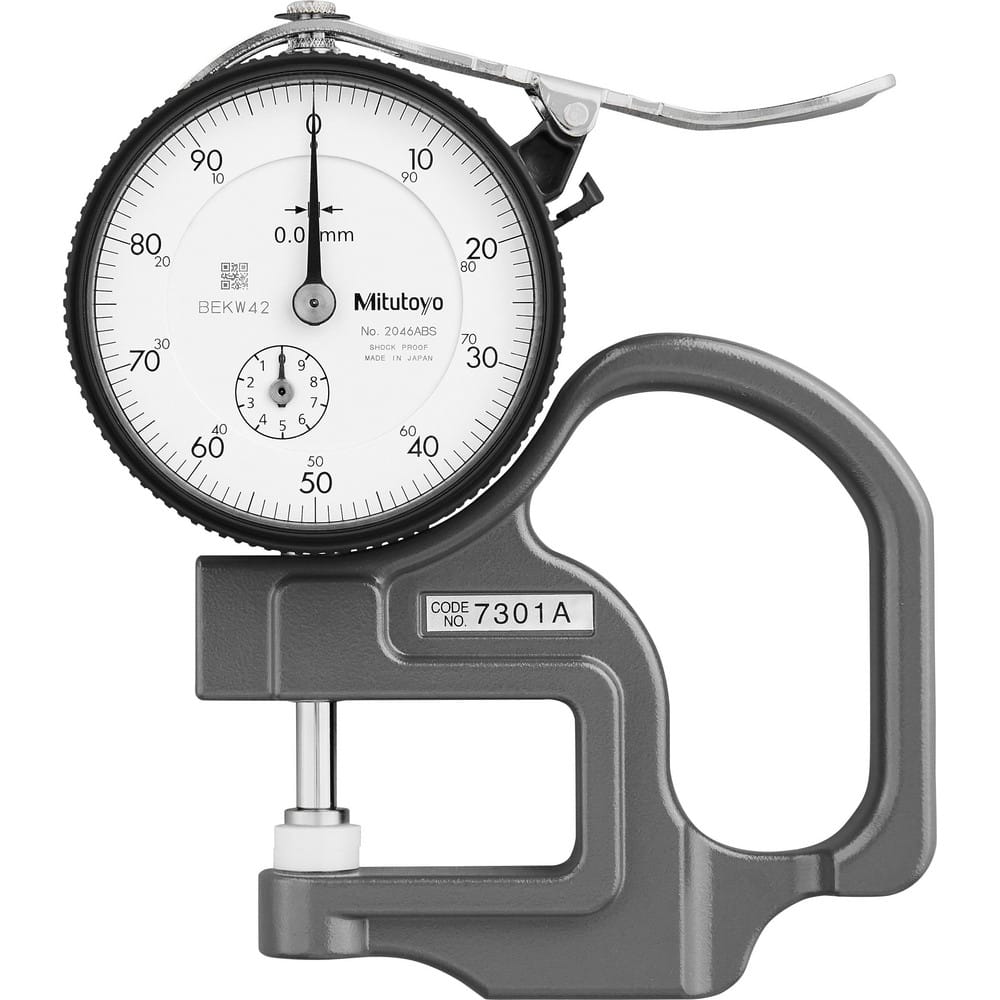

0 to 10mm Measurement, 0.01mm Graduation, 1.1811″ Throat Depth, Dial Thickness Gage 15 µm Accuracy, 1.4 N Force, 2″ Dial Diameter
Item #: 11493855
Brand: Mitutoyo
Model #: 7301A
Product Specifications
| Minimum Measurement (mm) | 0; 0.00 |
| Maximum Measurement | 10.00 |
| Maximum Measurement (Inch) | 10.00 |
| Maximum Measurement (mm) | 10.00 |
| Anvil Tip Shape | Flat |
| Operating Mechanism | Thumb Lever |
| Resolution | 0.010 |
| Graduation (Decimal Inch) | 0.0100 |
| Flat Contact Diameter | 4 mm |
| Anvil Face Diameter | 12 mm |
| Anvil Face Material | Ceramic |
| Features | Glare-Free Crystal; Mechanical Technology; Corrosion-Resistant; Durable; Scratch-Resistant Coating |
| Throat Depth (mm) | 30.00; 30 mm |
| Throat Depth (Decimal Inch) | 30 mm; 1.1811 |
| Accuracy (Decimal Inch) | ?15 ?m |
| Accuracy (micro m) | 15.00; ?15 ?m |
| Measuring Force (N) | 1.4 N; 1.40 |
| Dial Diameter (Inch) | 2; .400 in |
