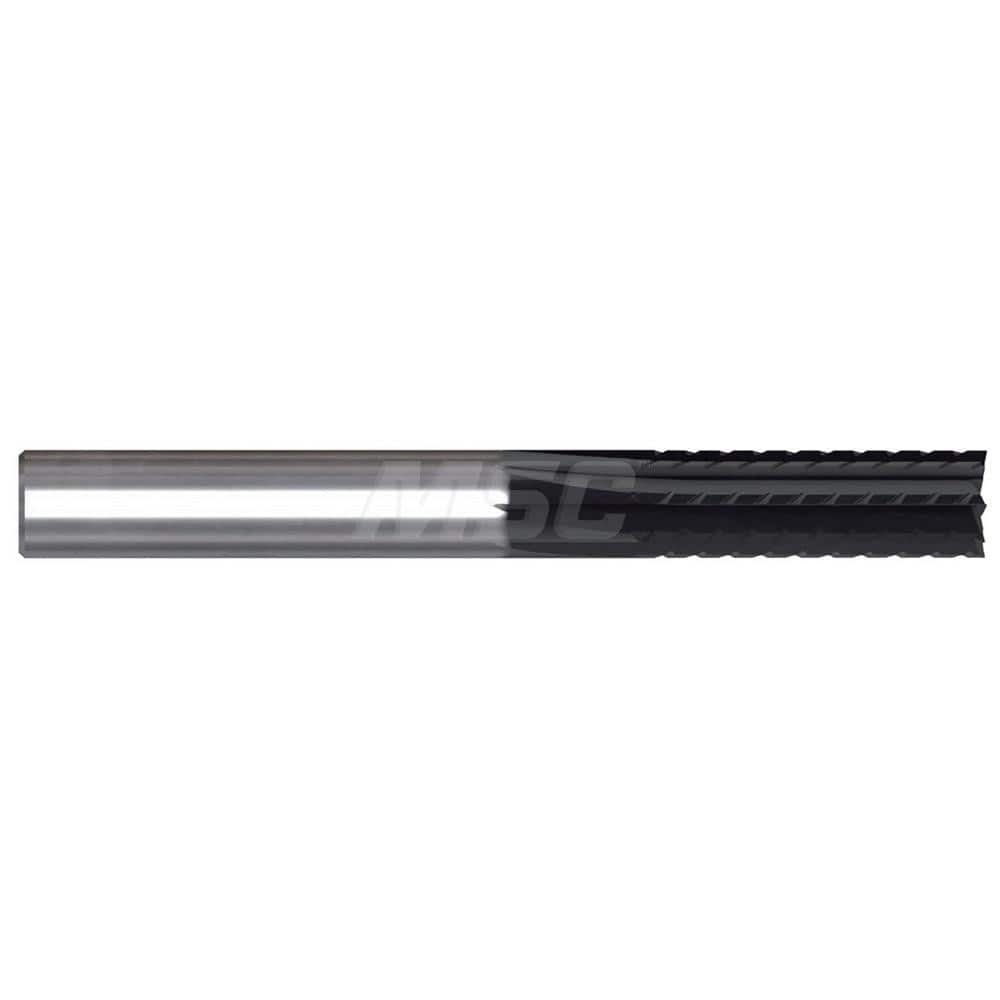

Straight Router Bits; Cutting Diameter (Decimal Inch): 0.2500; Cutting Diameter (Inch): 1/4; Cutting Diameter (mm): 6.35; End Type: Plain (No End); Number of Flutes: 6; Length of Cut (mm): 25.4000; Length of Cut (Decimal Inch): 1.0000; Length of Cut (Inch
Item #: 11481108
Brand: YG-1
Model #: URT5P1AB0250
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.2500 |
| Cutting Diameter (Inch) | 1/4 |
| Cutting Diameter (mm) | 6.35 |
| End Type | Plain (No End) |
| Number of Flutes | 6 |
| Length of Cut (mm) | 25.4000 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1 |
| Material Application | CFRP + GFRP |
| Material | Micro Grain Carbide |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (mm) | 6.3500 |
| Cutting Direction | Right |
| Overall Length (Inch) | 3.0000 |
| Overall Length (mm) | 76.2000 |
| Flute Type | Straight |
| Description | High Performance Machining Of Cfrp, Can Be Used As Rougher Or Finisher Yg-1 Special Cvd Coating For Extended Tool Life And Better Abrasion Resistance |
