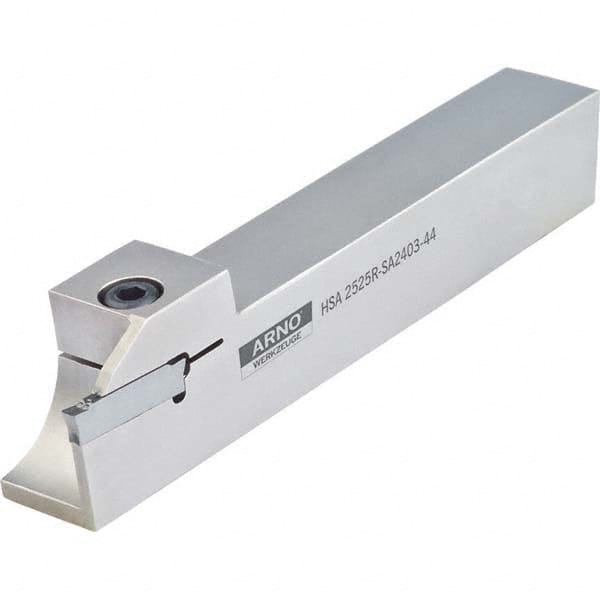

1.28″ Max Depth, 0.157 to 2.559″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 5.906″ OAL, 25mm Shank Height, Uses SA 35-40\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving
Item #: 11429776
Brand: Arno
Model #: 95986
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 1.2800 |
| Maximum Depth of Cut (mm) | 32.50 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 2.5590 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Minimum Groove Width (mm) | 3.99 |
| Toolholder Style | HSA Monoblock |
| Insert Holding Method | Screw |
| Insert Compatibility | SA 35-40? |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Series | Grooving; SA Parting |
| Overall Length (Decimal Inch) | 5.9060 |
| Head Length (Decimal Inch) | 1.2800 |
| Manufacturers Catalog Number | HSA 2525L-SA3504-65 |
| Coolant Through | No |
