![1.476″ Max Depth, 0.394 to 2.953″ Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6.693″ OAL, Uses SA 40-100\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving](http://exactindustrialsupply.com/cdn/shop/products/1142700-21_4c297043-2ba7-4661-826b-50fd54b15f18_1024x1024.jpg?v=1675212785)

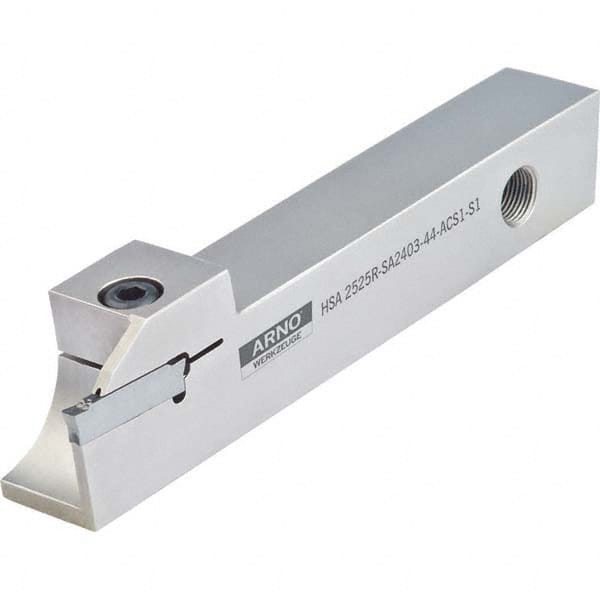

1.476″ Max Depth, 0.394 to 2.953″ Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6.693″ OAL, Uses SA 40-100\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving
Item #: 11429701
Brand: Arno
Model #: 501497
Product Specifications
Internal or External | External |
Maximum Depth of Cut (Decimal Inch) | 1.4760 |
Maximum Depth of Cut (mm) | 37.50 |
Hand of Holder | Right Hand |
Maximum Groove Width (Decimal Inch) | 2.9530 |
Minimum Groove Width (Decimal Inch) | 0.3940 |
Minimum Groove Width (mm) | 10.01 |
Toolholder Style | HSA Monoblock |
Insert Holding Method | Screw |
Insert Compatibility | SA 40-100? |
Shank Height (Inch) | 1-1/4 |
Shank Width/Diameter (Decimal Inch) | 1.2600 |
Series | Grooving; SA Parting |
Overall Length (Decimal Inch) | 6.6930 |
Head Length (Decimal Inch) | 1.4760 |
Manufacturers Catalog Number | HSA 3232R-SA4010-75-1.250 |
Coolant Through | No |
