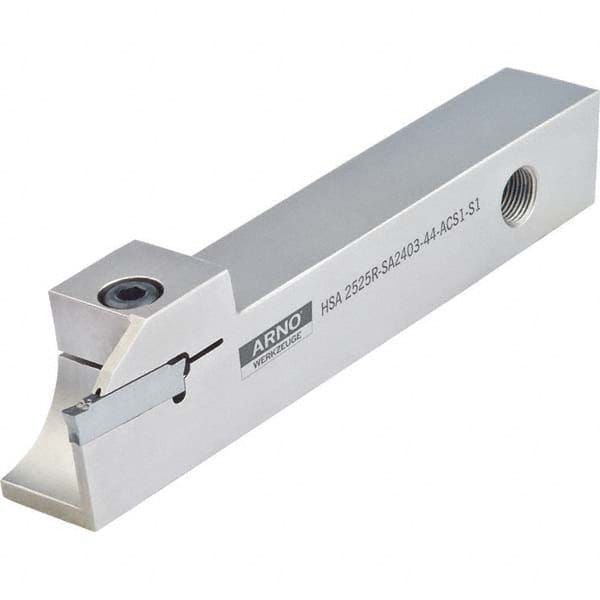

0.63″ Max Depth, 0.118 to 1.26″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 4.921″ OAL, 20mm Shank Height, Uses SA 24-30\x85 Inserts, HSA Monoblock Toolholder, Through Coolant, Series SA Parting / Grooving
Item #: 11428430
Brand: Arno
Model #: 501775
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (mm) | 16.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | HSA Monoblock |
| Insert Holding Method | Screw |
| Insert Compatibility | SA 24-30? |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Series | Grooving; SA Parting |
| Overall Length (Decimal Inch) | 4.9210 |
| Head Length (Decimal Inch) | 0.6300 |
| Manufacturers Catalog Number | HSA 2020L-SA2403-32-ACS1 |
| Coolant Through | Yes |
