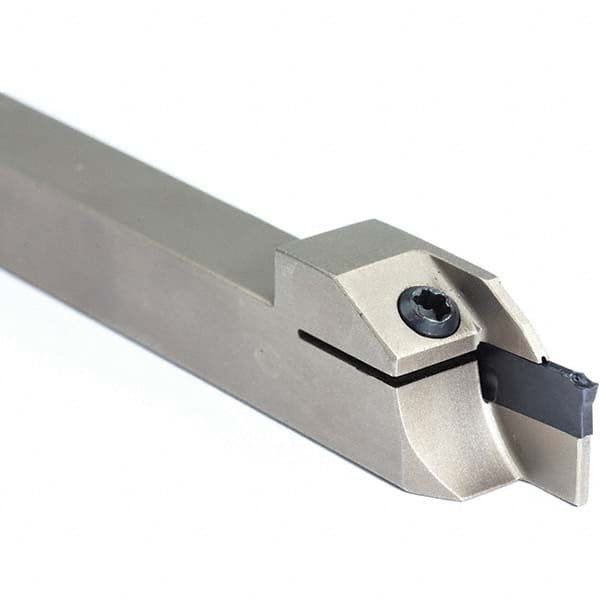

![0.63″ Max Depth, 0.079 to 1.26″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 4.331″ OAL, Uses SA 24-20\x85 Inserts, HSA Monoblock Toolholder, Through Coolant, Series SA Parting / Grooving](http://exactindustrialsupply.com/cdn/shop/products/1142811-21_10959123-68c9-4d1e-9c05-e49b94123889_1024x1024.jpg?v=1675204300)
0.63″ Max Depth, 0.079 to 1.26″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 4.331″ OAL, Uses SA 24-20\x85 Inserts, HSA Monoblock Toolholder, Through Coolant, Series SA Parting / Grooving
Item #: 11428216
Brand: Arno
Model #: 501733
Product Specifications
Internal or External | External |
Maximum Depth of Cut (Decimal Inch) | 0.6300 |
Maximum Depth of Cut (mm) | 16.00 |
Hand of Holder | Left Hand |
Maximum Groove Width (Decimal Inch) | 1.2600 |
Minimum Groove Width (Decimal Inch) | 0.0790 |
Minimum Groove Width (mm) | 2.01 |
Toolholder Style | HSA Monoblock |
Insert Holding Method | Screw |
Insert Compatibility | SA 24-20? |
Shank Height (Inch) | 5/8 |
Shank Width/Diameter (Decimal Inch) | 0.6300 |
Series | Grooving; SA Parting |
Overall Length (Decimal Inch) | 4.3310 |
Head Length (Decimal Inch) | 0.6300 |
Manufacturers Catalog Number | HSA 1616S-L-SA2402-32-ACS1-.625 |
Coolant Through | Yes |
