![1.28″ Max Depth, 0.236 to 2.559″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6.693″ OAL, Uses SA 35-60\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving](http://exactindustrialsupply.com/cdn/shop/products/1142700-21_efabe23c-d81e-4f0e-bca5-a2e89c4394fa_1024x1024.jpg?v=1675202608)

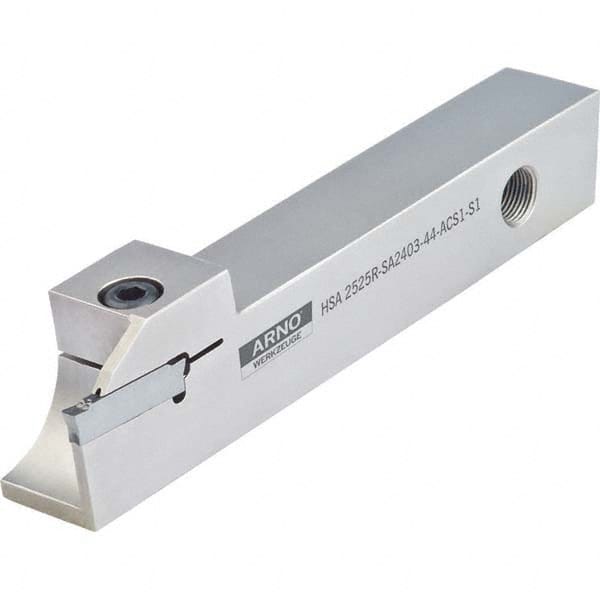

1.28″ Max Depth, 0.236 to 2.559″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6.693″ OAL, Uses SA 35-60\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving
Item #: 11427010
Brand: Arno
Model #: 501210
Product Specifications
Internal or External | External |
Maximum Depth of Cut (Decimal Inch) | 1.2800 |
Maximum Depth of Cut (mm) | 32.50 |
Hand of Holder | Left Hand |
Maximum Groove Width (Decimal Inch) | 2.5590 |
Minimum Groove Width (Decimal Inch) | 0.2360 |
Minimum Groove Width (mm) | 5.99 |
Toolholder Style | HSA Monoblock |
Insert Holding Method | Screw |
Insert Compatibility | SA 35-60? |
Shank Height (Inch) | 1-1/4 |
Shank Width/Diameter (Decimal Inch) | 1.2600 |
Series | Grooving; SA Parting |
Overall Length (Decimal Inch) | 6.6930 |
Head Length (Decimal Inch) | 1.2800 |
Manufacturers Catalog Number | HSA 3232L-SA3506-65-1.250 |
Coolant Through | No |
