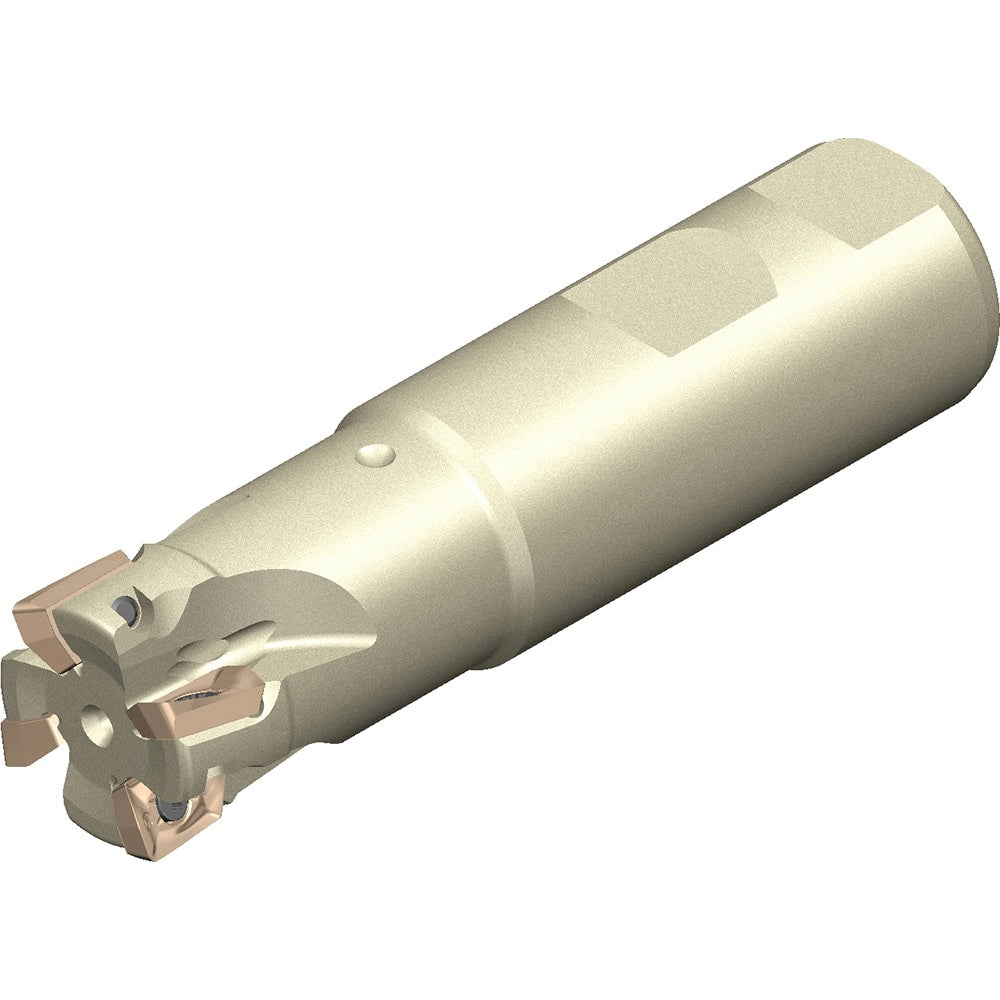

1-1/4″ Cut Diam, 0.394″ Max Depth, 1mm Shank Diam, 4.341″ OAL, Indexable Square-Shoulder End Mill
Item #: 11304110
Brand: Sumitomo
Model #: 2900W76
Product Specifications
Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
Maximum Cutting Diameter (Inch) | 1-1/4 |
Maximum Depth of Cut (Decimal Inch) | 0.3940 |
Cutter Style | WEZ |
Shank Type | Weldon |
Shank Diameter (Inch) | 1 |
Overall Length (Decimal Inch) | 4.3410 |
Tool Material | Steel |
Series | WEZ |
Lead Angle | 90 |
Shank Length (Decimal Inch) | 2.2810 |
Insert Compatibility | AOET11; AOMT11 |
Hand of Holder | Right |
Manufacturers Catalog Number | WEZ21250EW05-1.000 |
Number Of Cutter Inserts | 5 |
Coolant Through | Yes |
