![125mm Cut Diam, 38.1mm Arbor Hole Diam, 15mm Max Depth, Indexable Square-Shoulder Face Mill](http://exactindustrialsupply.com/cdn/shop/products/1130277-21_b1c04b70-6dab-4ff0-85fc-ade6a82b45c2_1024x1024.jpg?v=1675208137)

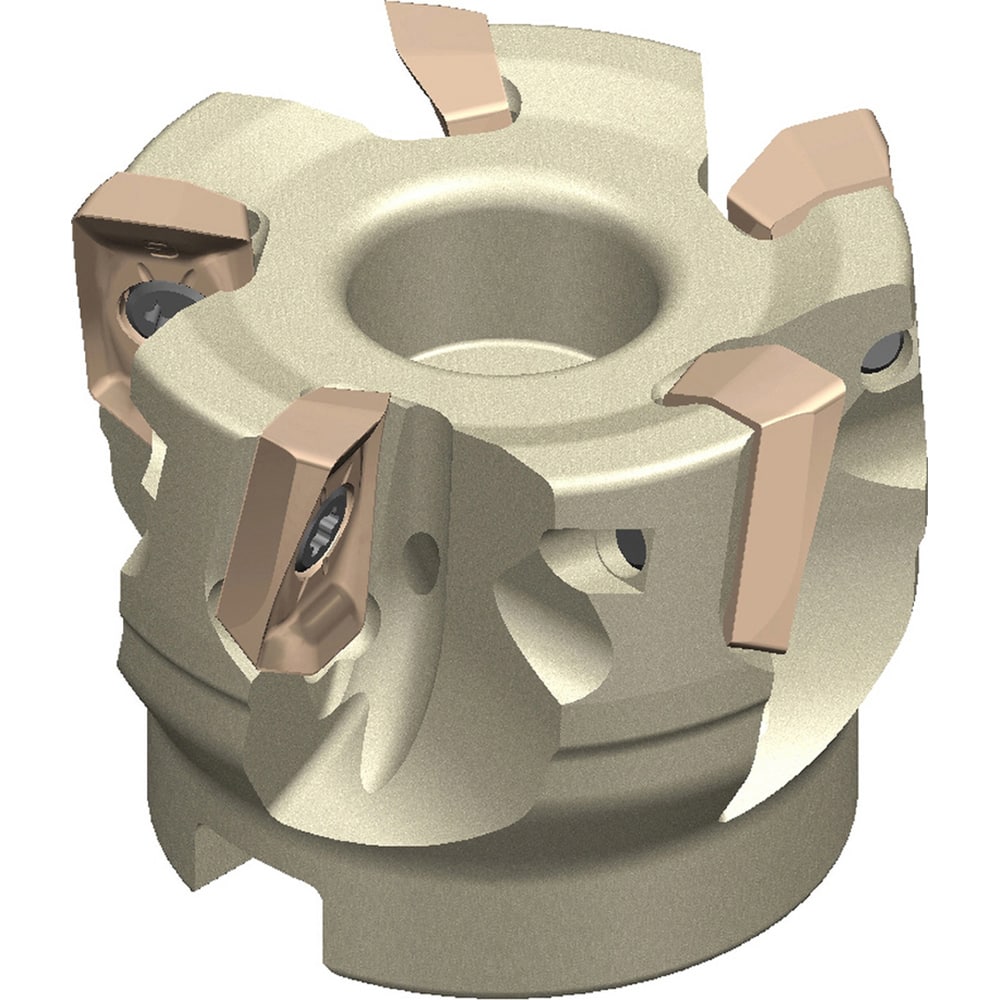

125mm Cut Diam, 38.1mm Arbor Hole Diam, 15mm Max Depth, Indexable Square-Shoulder Face Mill
Item #: 11302833
Brand: Sumitomo
Model #: 2200AWQ
Product Specifications
Maximum Cutting Diameter (mm) | 125.00 |
Maximum Depth of Cut (mm) | 15.00 |
Arbor Hole Diameter (mm) | 38.10 |
Arbor Hole Diameter (Decimal Inch) | 38.1000 |
Compatible Insert Size Code | AOMT17; AOET17 |
Cutter Style | WEZ |
Cutting Direction | Right Hand |
Lead Angle | 90 |
Series | WEZ |
Overall Height (Mm - 5 Decimals) | 63.00 |
Toolholder Material | Steel |
Manufacturers Catalog Number | WEZ17125R06 |
Coolant Through | Yes |
Number Of Cutter Inserts | 6 |
