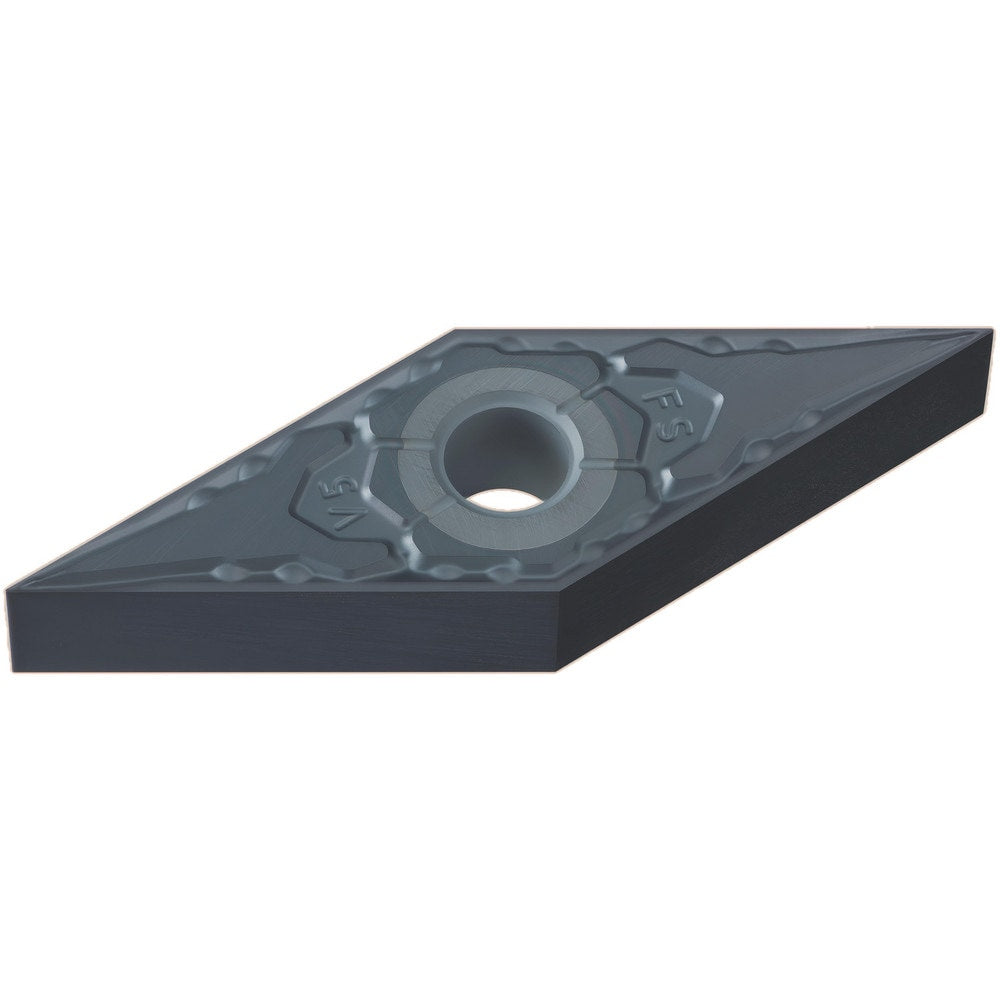

Turning Insert: VNGG332FS MP9015, Carbide

Turning Insert: VNGG332FS MP9015, Carbide


Item #: 06541841
Brand: Mitsubishi
Model #: 22817235

Product Specifications

ANSI Insert Code VNGG332
ISO Insert Code VNGG160408
Relief Angle 0
Insert Style VNGG
Corner Radius (mm) 0.80
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Included Angle 35
Manufacturer Grade MP9015
Coating/Finish PVD
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Inscribed Circle (mm) 9.53
Insert Material Carbide
Insert Shape V - Diamond (Rhombic) 35-Deg
Chip Breaker Operation Finishing
Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 4
Insert Shape Code V
Clearance Code N
Tolerance Code G
Primary Workpiece Material Code S
Chip Breaker FS
ANSI Size Code 332
ISO Size Code 160408
UNSPSC Code 23242105
Insert Size Code 3
$32.43
