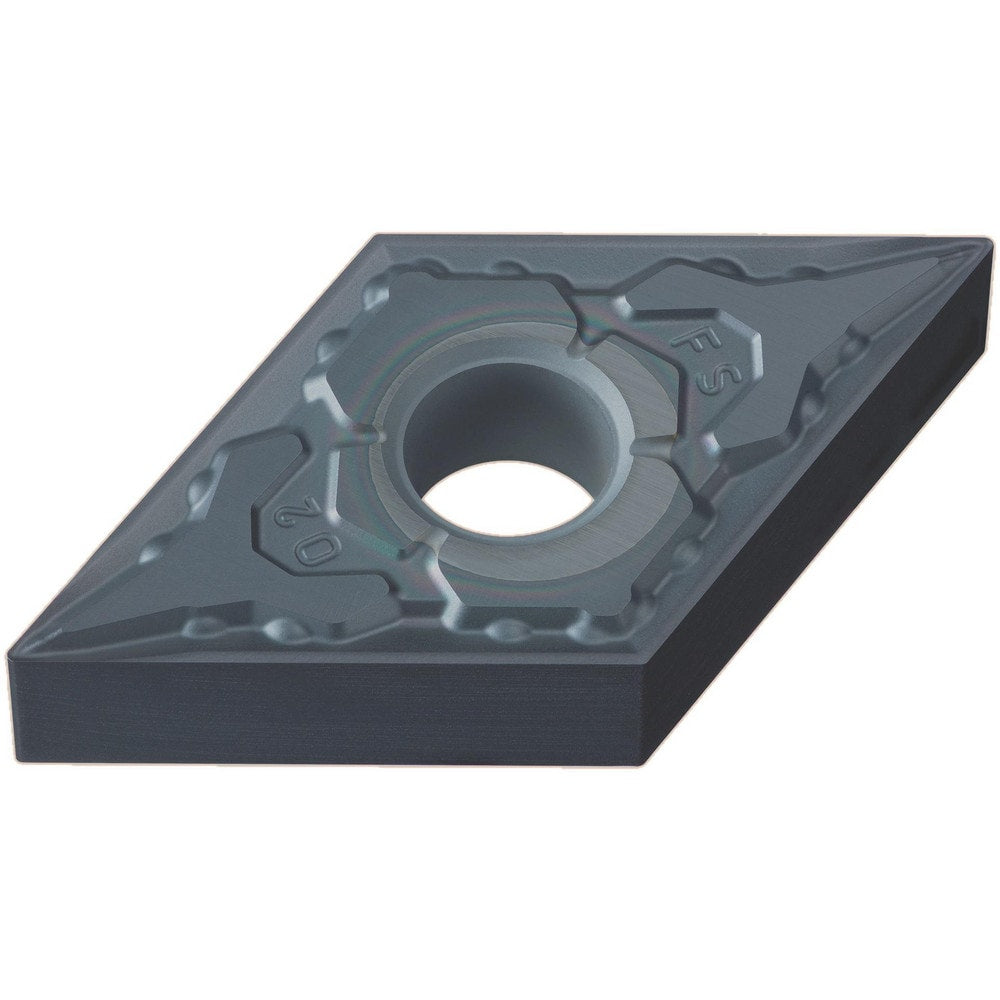

Turning Insert: DNGG442FS MP9015, Carbide
Item #: 06563209
Brand: Mitsubishi
Model #: 22817297
Product Specifications
| ANSI Insert Code | DNGG442 |
| ISO Insert Code | DNGG150608 |
| Relief Angle | 0 |
| Insert Style | DNGG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 55 |
| Manufacturer Grade | MP9015 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Clearance Code | N |
| Tolerance Code | G |
| Primary Workpiece Material Code | S |
| Chip Breaker | FS |
| ANSI Size Code | 442 |
| ISO Size Code | 150608 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 4 |
