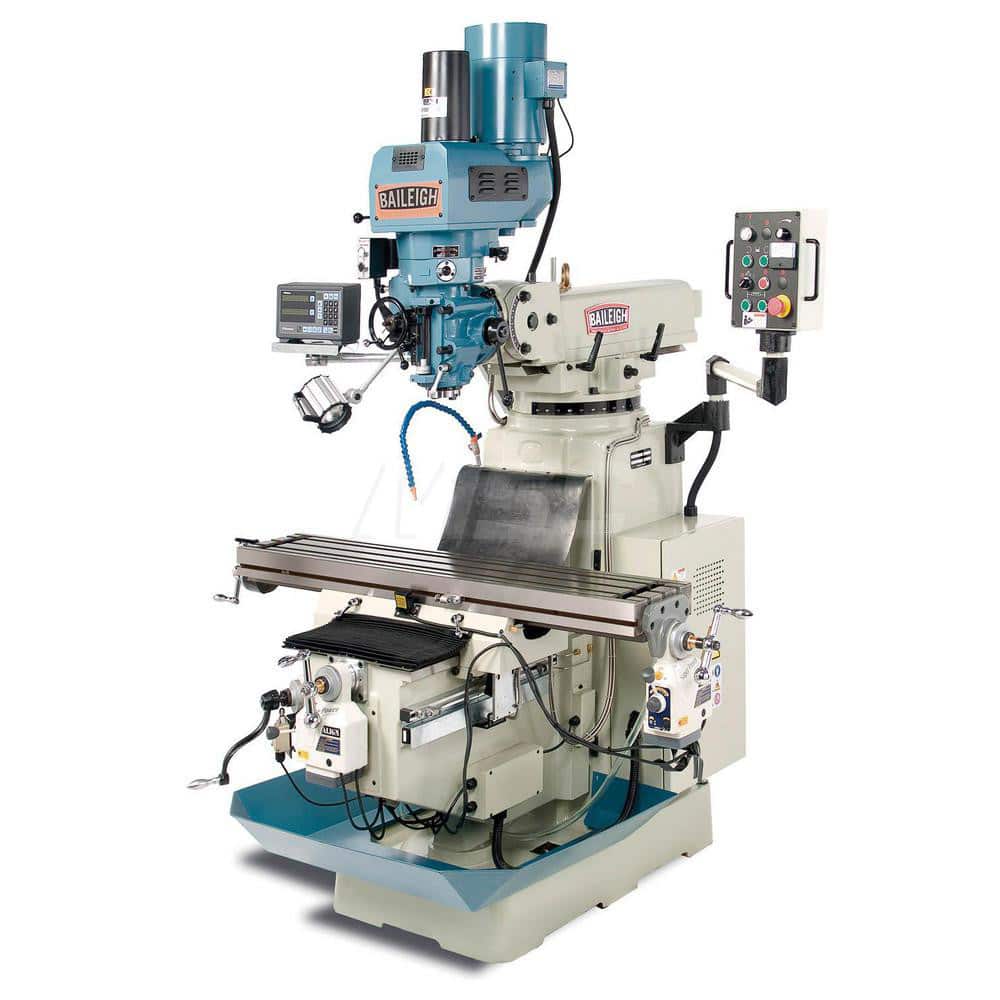

Knee Milling Machine: 26.77″, Variable Speed Control, 3 Phase 80 to 3,800 RPM, NT40 Spindle Taper
Item #: 10754810
Brand: Baileigh
Model #: 1008136
Product Specifications
| Minimum Spindle to Table Distance (Decimal Inch) | 1.5700 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.5500 |
| Minimum Spindle Speed | 80 RPM |
| Maximum Spindle Speed | 3800 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Cross Travel (Decimal Inch) | 35.4300 |
| Longitudinal Travel (Decimal Inch) | 35.4300 |
| Knee Travel (Decimal Inch) | 15.9800 |
| Table Load Capacity (Lb.) | 550.00 |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Ram Travel Length (Decimal Inch) | 18.8900 |
| Spindle Speed Control | Variable Speed |
| Spindle Taper Size | NT40 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Includes | Ridgid Head |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0050 |
| Maximum Spindle To Column Distance (Decimal Inch) | 26.7700 in |
