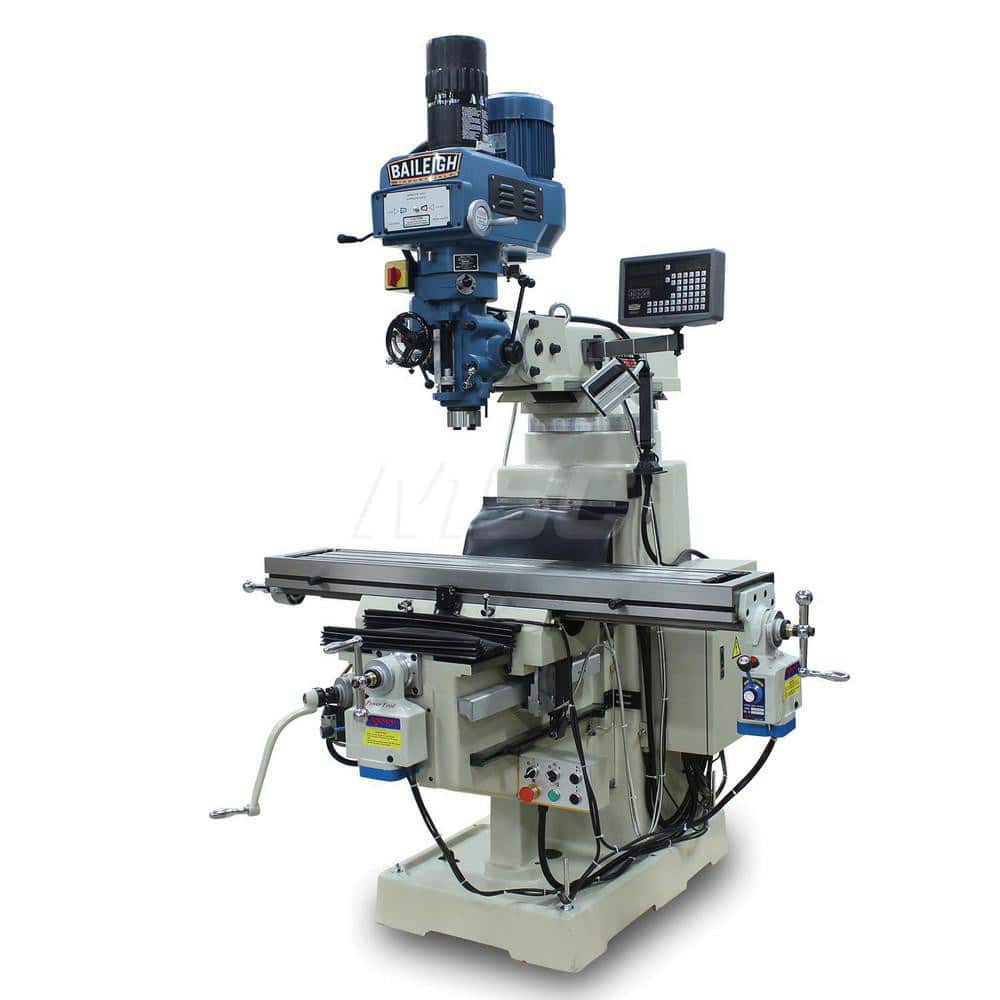

Knee Milling Machine: 26.77″, Variable Speed Control, 3 Phase 60 to 4,200 RPM, NT40 Spindle Taper
Item #: 10753887
Brand: Baileigh
Model #: 1020696
Product Specifications
| Minimum Spindle to Table Distance (Decimal Inch) | 4.0000 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.0000 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Cross Travel (Decimal Inch) | 32.0000 |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Knee Travel (Decimal Inch) | 12.9920 |
| Table Load Capacity (Lb.) | 550.00 |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Ram Travel Length (Decimal Inch) | 20.0000 |
| Ram Travel Length (Inch) | 20 |
| Spindle Speed Control | Variable Speed |
| Spindle Taper Size | NT40 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Includes | Coolant; Power Feeds |
| Maximum Spindle To Column Distance (Decimal Inch) | 26.7700 in |
