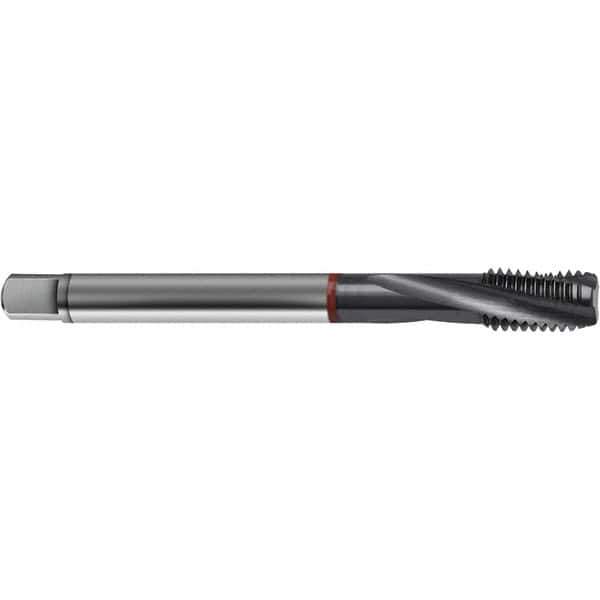

Guhring - 8-36 UNF 3 Flute 2BX Bottoming Spiral Flute Tap - High Speed Steel, TiCN Finish, 2.4803" OAL, Right Hand Flute, Right Hand Thread, H3/H4, Series 4374
Item #: 10663862
Brand: Guhring
Model #: 9043740041660
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 8-36 |
| Chamfer | Bottoming |
| Class of Fit | 2BX |
| Thread Limit | H3/H4 |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.4803 |
| Thread Standard | UNF |
| Series/List | 4374 |
| Neck Length (Decimal Inch) | 0.8268 |
| Tapping Depth (Decimal Inch) | 0.8270 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Shank Length (Decimal Inch) | 1.6535 |
| Material Application | Hardened Steel |
