![50mm Cut Diam, 41mm Arbor Hole Diam, 12mm Max Depth, Indexable Shoulder Mill](http://exactindustrialsupply.com/cdn/shop/products/1055381-21_46fe08fb-9d50-4834-a4fa-616e92ddfa47_1024x1024.jpg?v=1675200213)

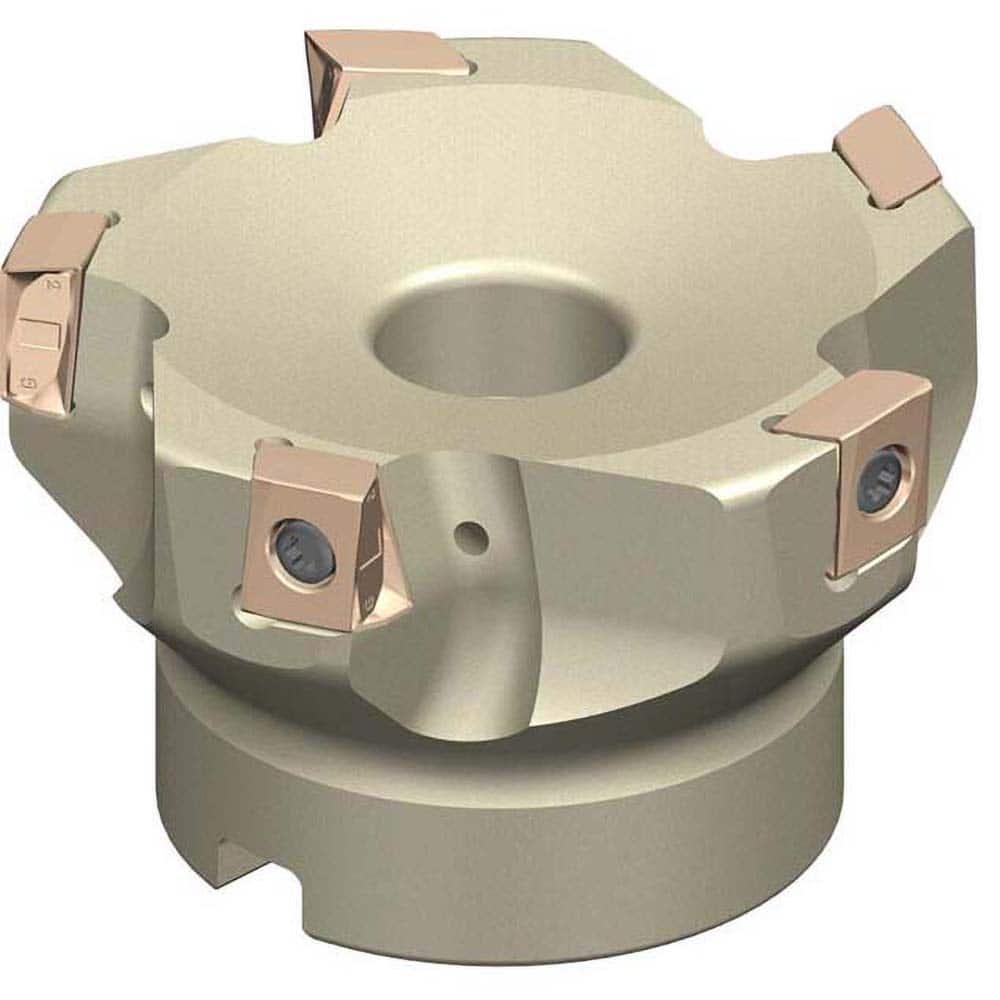

50mm Cut Diam, 41mm Arbor Hole Diam, 12mm Max Depth, Indexable Shoulder Mill
Item #: 10554053
Brand: Sumitomo
Model #: 2200ASY
Product Specifications
Maximum Cutting Diameter (mm) | 50.00 |
Maximum Depth of Cut (mm) | 12.00 |
Arbor Hole Diameter (mm) | 41.00 |
Arbor Hole Diameter (Inch) | 41 |
Arbor Hole Diameter (Decimal Inch) | 41.0000 |
Compatible Insert Size Code | LNEX13 |
Cutter Style | TSX |
Cutting Direction | Right Hand |
Lead Angle | 90 |
Series | TSX |
Overall Height (Mm - 5 Decimals) | 40.00 |
Complete Insert Compatibility | LNEX13 |
Toolholder Material | Steel |
Manufacturers Catalog Number | TSXM13050RS |
Coolant Through | Yes |
Number Of Cutter Inserts | 5 |
