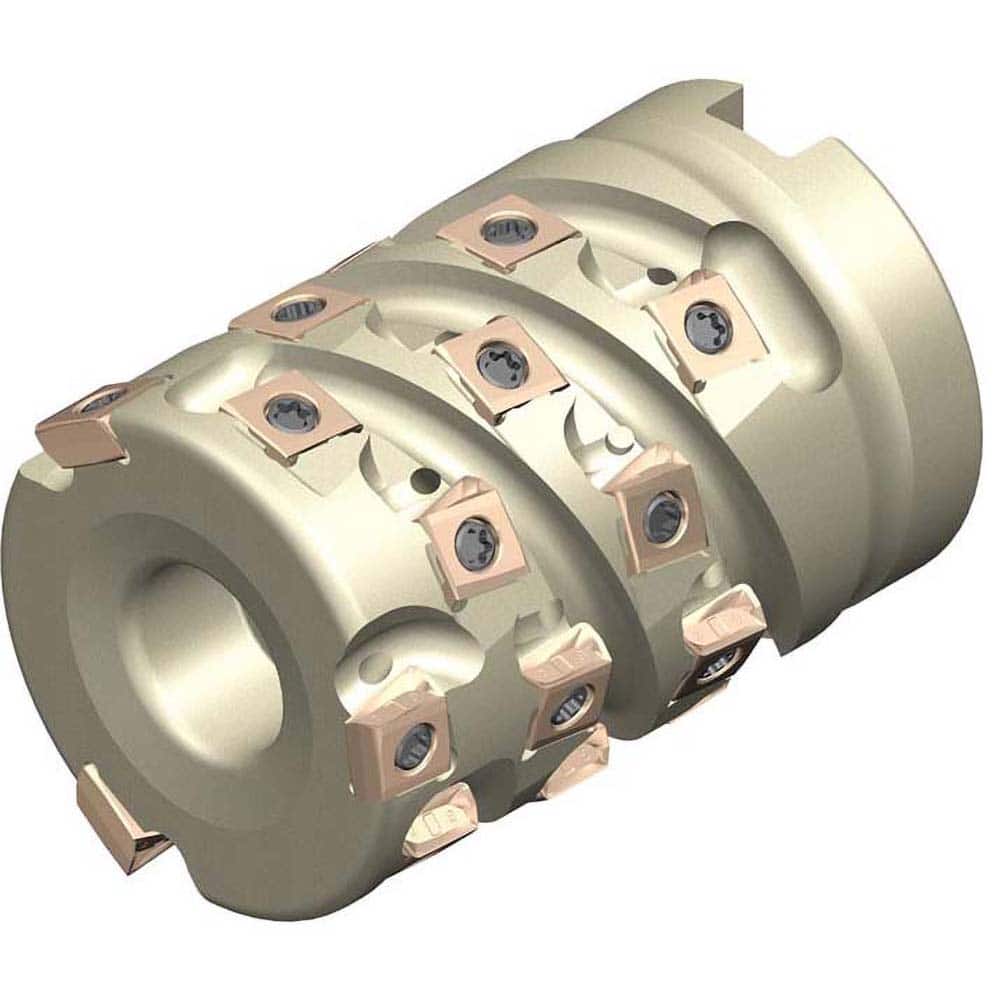

50mm Cut Diam, 47mm Arbor Hole Diam, 54mm Max Depth, Indexable Repeater Shoulder Mill
Item #: 10553741
Brand: Sumitomo
Model #: 2200AUT
Product Specifications
Maximum Cutting Diameter (mm) | 50.00 |
Maximum Depth of Cut (mm) | 54.00 |
Arbor Hole Diameter (mm) | 47.00 |
Arbor Hole Diameter (Inch) | 47 |
Arbor Hole Diameter (Decimal Inch) | 47.0000 |
Compatible Insert Size Code | LNEX08 |
Cutter Style | TSX |
Cutting Direction | Right Hand |
Lead Angle | 90 |
Series | TSX |
Overall Height (Mm - 5 Decimals) | 75.00 |
Complete Insert Compatibility | LNEX08 |
Toolholder Material | Steel |
Manufacturers Catalog Number | TSXR08050RS5422Z03 |
Coolant Through | Yes |
Number Of Cutter Inserts | 3 |
