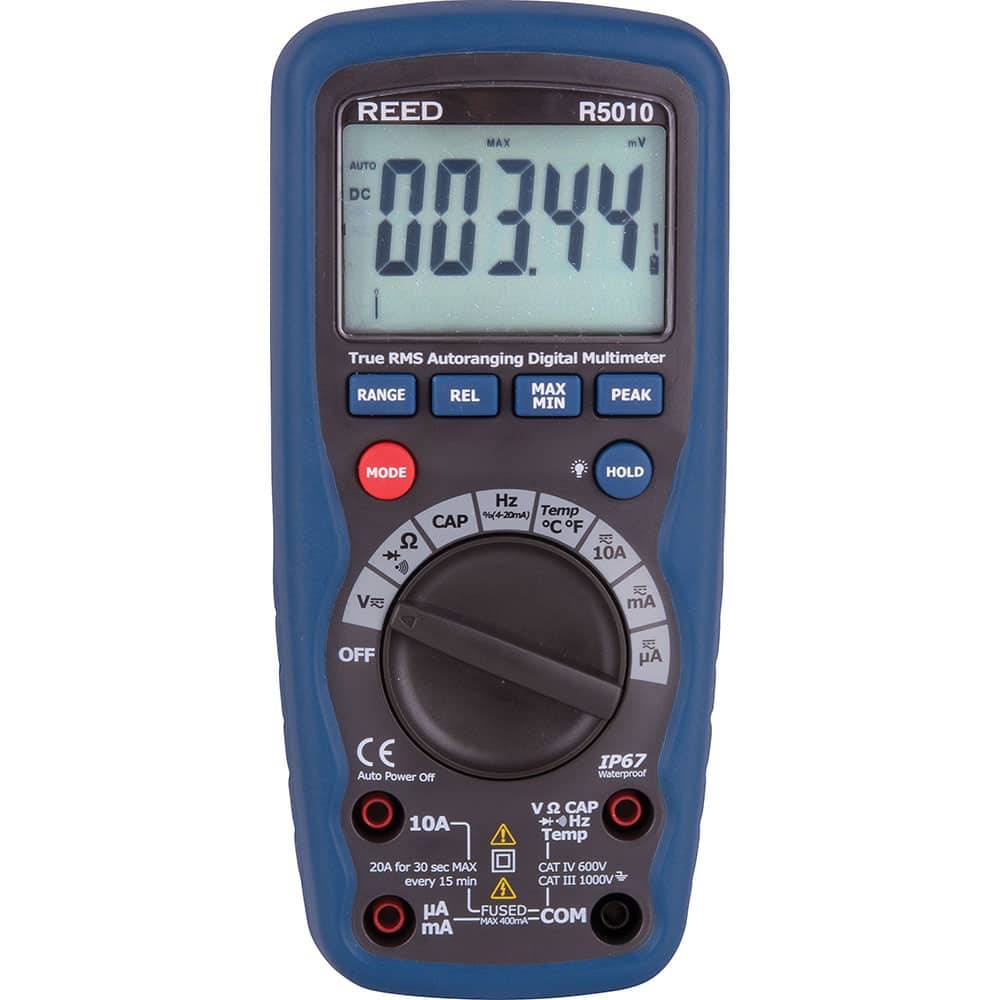

REED Instruments - Multimeters; Multimeter Type: Auto Ranging; Compact; Digital; Manual Ranging; True RMS ; Measures: Capacitance; Continuity; Current; Diode Test; Frequency; microAmps; Milliamps; mVDC; Resistance; Temperature; Voltage ; CAT Rating: CAT
Item #: 10164622
Brand: REED Instruments
Model #: R5010
Product Specifications
Multimeters; Multimeter Type: Auto Ranging; Compact; Digital; Manual Ranging; True RMS ; Measures: Capacitance; Continuity; Current; Diode Test; Frequency; microAmps; Milliamps; mVDC; Resistance; Temperature; Voltage ; CAT Rating: CAT III; CAT IV ; Maximum AC Voltage: 1000 ; Maximum DC Voltage: 1000 ; Maximum AC Current (A): 10
| Multimeter Type | Auto Ranging; Compact; Digital; Manual Ranging; True RMS |
| Measures | Capacitance; Continuity; Current; Diode Test; Frequency; microAmps; Milliamps; mVDC; Resistance; Temperature; Voltage |
| CAT Rating | CAT III; CAT IV |
| Maximum AC Voltage | 1000 |
| Maximum DC Voltage | 1000 |
| Maximum AC Current (A) | 10 |
| Maximum AC Current (mA) | 400 |
| Maximum DC Current (A) | 10 |
| Maximum DC Current (mA) | 400.00 |
| Maximum Capacitance (Microfarads) | 4000.00 |
| Maximum Capacitance (mF) | 40.000 |
| Maximum Resistance (Megohms) | 40 |
| Maximum Resistance (Ohms) | 400 |
| Temp Measurement Range (C) | -50 - 1000 |
| Temp Measurement Range w/Iincluded Probe (C) | -40 - 250 |
| Temp Measurement Range (F) | -58 - 1832 |
| Temp Measurement Range w/Included Probe (F) | -40 - 482 |
| Includes | Temperature Input Adapter; Thermocouple Wire Probe (Type K); Test Leads; Battery; Carrying Case; Weatherproof plugs |
| Frequency | 100MHz |
| Counts | 40000 |
| Battery Type | (1) 9 V |
| Standards Met | CE, IP67, Drop Tested (2M) |
| PSC Code | 6625 |
