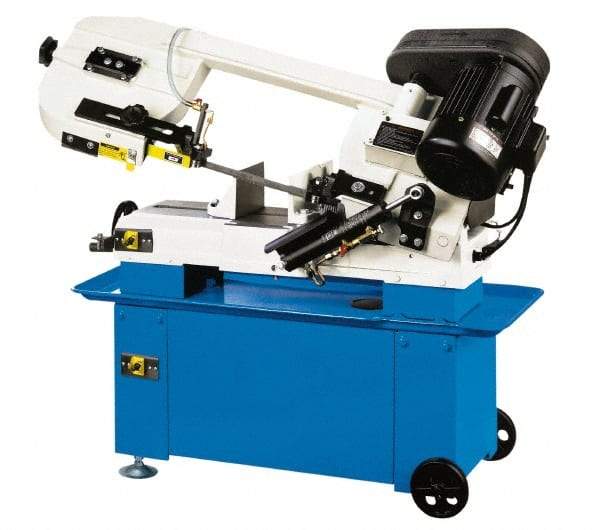

Vectrax - 7 x 12" Manual Combo Horizontal & Vertical Bandsaw - 1 Phase, 45° Vise Angle of Rotation, 1 hp, 115/230 Volts, Step Pulley Drive
Item #: 09518879
Brand: Vectrax
Model #: RF-712N VTX
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) at 90 (Inch) | 7 x 12 |
| Maximum Capacity (Rounds) at 90 (Inch) | 7 |
| Phase | 1 |
| Coolant System | Yes |
| Maximum Capacity (Rectangular) at 45 (mm) | 120 x 125 |
| Maximum Capacity (Rectangular) at 45 (Inch) | 4-3/4 x 4-7/8 |
| Maximum Capacity (Rounds) at 45 (Inch) | 5 |
| Maximum Capacity (Rounds) at 45 (mm) | 127.00 |
| Blade Width (mm) | 19.05 |
| Blade Width (Decimal Inch) | 0.7500 |
| Blade Width (Inch) | 3/4 |
| Blade Speeds (SFPM) | 90, 135, 195, 255 |
| Blade Length (mm) | 2362.20 |
| Blade Length (Inch) | 93 |
| Throat Band to Column (Inch) | 7 |
| Blade Thickness (mm) | 0.80 |
| Blade Thickness (Decimal Inch) | 0.0315 |
| Horsepower (HP) | 1 |
| Capacity Under Guides (Inch) | 12 |
| Overall Height (mm) | 955.04 |
| Overall Height (Decimal Inch) | 37.6000 |
| Voltage | 115/230 |
