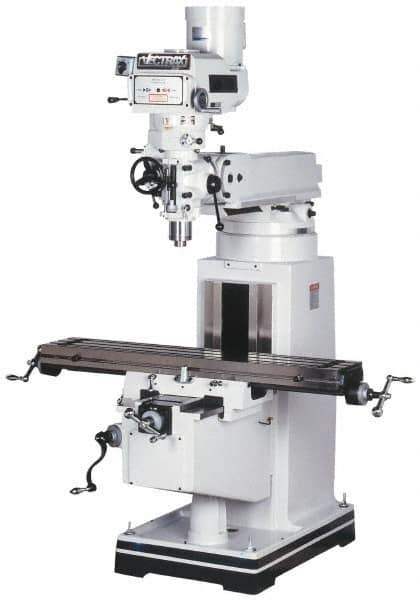

Vectrax - 10" Table Width x 54" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - NT40 Spindle Taper, 5 hp
Item #: 09516956
Brand: Vectrax
Model #: GS20VS W/NT40
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications | |
---|---|
Spindle Speed Control | Variable Speed Pulley |
Table Length (Inch) | 54 |
Table Width (Inch) | 10 |
Phase | 3 |
Longitudinal Travel (Decimal Inch) | 32.0000 |
Cross Travel (Decimal Inch) | 16.5000 |
Knee Travel (Decimal Inch) | 17.5000 |
Number of Spindle Speeds | Variable |
Maximum Spindle Speed (RPM) | 3600.00 |
Minimum Spindle Speed (RPM) | 70.00 |
Spindle Travel Length (Inch) | 5 |
Spindle Taper Size | NT40 |
Quill Diameter (Decimal Inch) | 3.7795 |
Horsepower (HP) | 5.00 |
Voltage | 220/440 |
