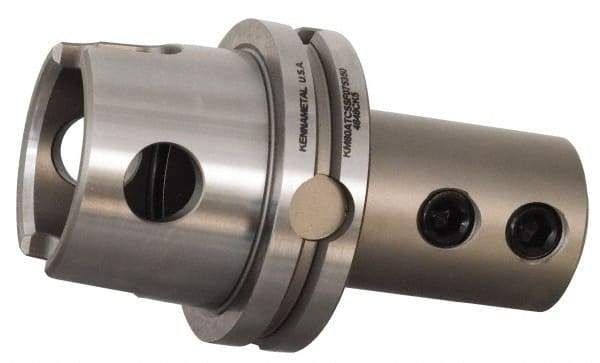

Kennametal - KM80ATC Modular Connection, 2" Inside Hole Diam, 6-1/2" Projection, Straight Shank with Flat Adapter - Through Coolant
Item #: 09074642
Brand: Kennametal
Model #: 2024417
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Straight Shank w/ Flat Adapter |
| Connection Size | KM80ATC |
| Inside Hole Diameter (mm) | 50.80 |
| Inside Hole Diameter (Decimal Inch) | 2.0000 |
| Projection (mm) | 165.1 |
| Projection (Decimal Inch) | 6.5000 |
| Nose Diameter (mm) | 80.01 |
| Nose Diameter (Decimal Inch) | 3.1500 |
| Overall Length (Decimal Inch) | 8.2720 |
| Through Coolant | Yes |
