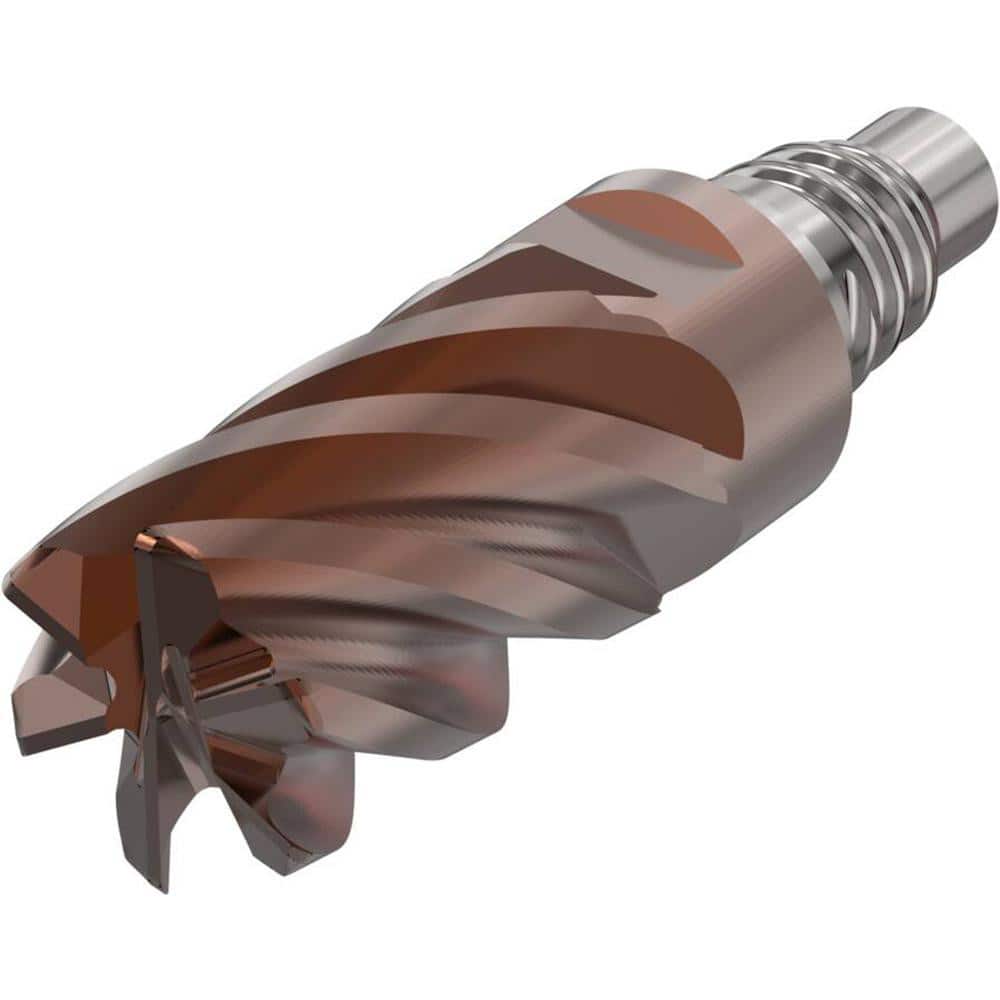

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 5/8; Mill Diameter (Decimal Inch): 0.6250; Length of Cut (Inch): 15/16; Connection Type: E16; Overall Length (Decimal Inch): 2.0118; Centercutting: Yes; Corner Radius (Decimal Inch): 0.1
Item #: 08986002
Brand: Seco
Model #: 10138215
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 15/16 |
| Connection Type | E16 |
| Overall Length (Decimal Inch) | 2.0118 |
| Centercutting | Yes |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Flute Type | Helical |
| Series | XSE720 |
| Helix Angle | 38 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Number Of Flutes | 6 |
| Coating/Finish | HXT |
| End Mill Material | Solid Carbide |
| Coolant Through | No |
| Corner Radius (Inch) | 1/8 |
| Variable Helix | No |
| Variable Index | No |
