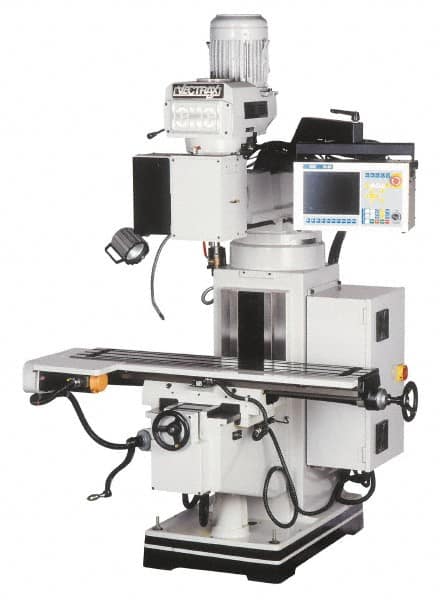

CNC Milling Machine: 9 x 49″ Table, 1 Phase 29″ Longitudinal Travel, 11.5″ Cross Travel, 3 hp
Item #: 08943334
Brand: Vectrax
Model #: GSN16V-1PH/M15
Product Specifications
| Table Length (Decimal Inch) | 49.0000 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Phase | 1 |
| Longitudinal Travel (Inch) | 29 |
| Longitudinal Travel (Decimal Inch) | 29.0000 |
| Cross Travel (Decimal Inch) | 11.5000 |
| Knee Travel (Inch) | 5 |
| Knee Travel (Decimal Inch) | 5.0000 |
| Minimum Spindle Speed | 70 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Quill Diameter (Decimal Inch) | 3.3740 |
| Positioning Repeatability (Decimal Inch) | 0.0005 |
| Voltage | 220 |
| Horsepower | 3.00 |
| Table Width/Diameter (Decimal Inch) | 9.0000 |
