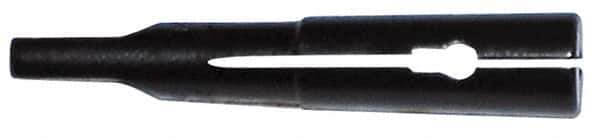

Scully Jones - 21/32 Inch, MT3 Outside Morse Taper, Drill Driver - 1/4 Inch Projection, 0.367 to 0.373 Inch Drill Tang Thickness
Item #: 08791758
Brand: Scully Jones
Model #: 09576
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Driver Type | Drill Driver |
| Outside Morse Taper Size | MT3 |
| Drill Size (Inch) | 21/32 |
| Drill Size (Decimal Inch) | 0.6563 |
| Projection (Decimal Inch) | 0.2500 |
| Drill Depth (Decimal Inch) | 1.4700 |
| Drill Tang Compatible | Yes |
| Maximum Drill Tang Thickness (Decimal Inch) | 0.3730 |
| Minimum Drill Tang Thickness (Decimal Inch) | 0.3670 |
| Drill Tang Length (Decimal Inch) | 0.5600 |
| Approval Listing/Regulations | ANSI/ASME B94.35 |
| Runout Maximum (Decimal Inch) | 0.0020 |
