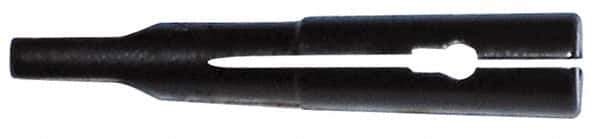

Scully Jones - 3/16 Inch, MT2 Outside Morse Taper, Drill Driver - 1/4 Inch Projection, 0.09 to 3/32 Inch Drill Tang Thickness
Item #: 08781726
Brand: Scully Jones
Model #: 09459
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Driver Type | Drill Driver |
| Outside Morse Taper Size | MT2 |
| Drill Size (Inch) | 3/16 |
| Drill Size (Decimal Inch) | 0.1875 |
| Projection (Decimal Inch) | 0.2500 |
| Drill Depth (Decimal Inch) | 0.7500 |
| Drill Tang Compatible | Yes |
| Maximum Drill Tang Thickness (Decimal Inch) | 0.0940 |
| Minimum Drill Tang Thickness (Decimal Inch) | 0.0900 |
| Drill Tang Length (Decimal Inch) | 0.2800 |
| Approval Listing/Regulations | ANSI/ASME B94.35 |
| Runout Maximum (Decimal Inch) | 0.0020 |
