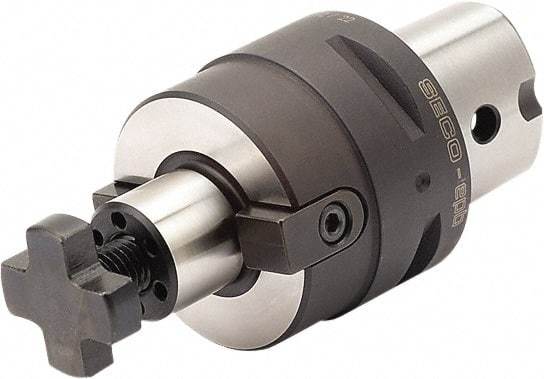

Seco - C5 Modular Connection 22mm Pilot Diam Shell Mill Holder - 40mm Flange to Nose End Projection, 48mm Nose Diam, Through-Spindle Coolant
Item #: 08752164
Brand: Seco
Model #: 27016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Pilot Diameter (mm) | 22.00 |
| Pilot Diameter (Decimal Inch) | 0.8661 |
| Projection Flange to Nose End (mm) | 40.00 |
| Projection Flange to Nose End (Decimal Inch) | 1.5748 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 48.00 |
| Nose Diameter (Decimal Inch) | 1.8898 |
| Coolant Type | Through-Spindle |
