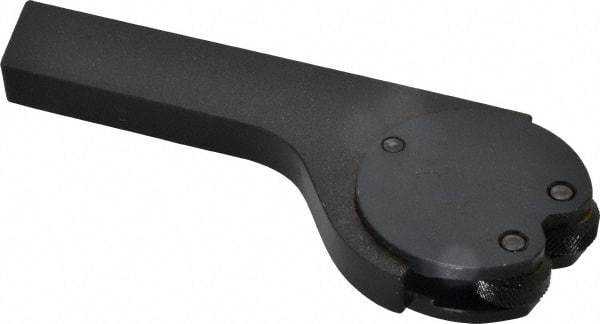

Value Collection - Neutral Cut, Diagonal, 1/2" Wide 1-1/8" High x 6-1/2" Long Rectangle Shank, Pivot-Head Bump Knurlers - 2 Knurls Required (Included), 3/4" Diam x 3/8" Wide Face, 1/4" Hole Diam, Series KT
Item #: 08654048
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Pivot-head bump knurlers, also known as self-centering knurlers, are designed with a pivoting heads that aligns with the part to be rolled. The knurls are mounted between the thrust washers of the holder to ensure a smooth and even rotation.
| Product Specifications | |
|---|---|
| Knurler Type | Pivot-Head |
| Cutting Direction | Neutral |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (Inch) | 1-1/8 |
| Shank Length (Inch) | 6-1/2 |
| Knurl Diameter (Inch) | 3/4 |
| Knurl Face Width (Inch) | 3/8 |
| Knurl Hole Diameter (Inch) | 1/4 |
| Knurl Hole Diameter (mm) | 6.35 |
| Number of Knurls Required | 2 |
| Knurl Series | KT |
| Modular | No |
| Includes Knurl Wheels | Yes |
| Pattern | Diagonal |
| Knurl Patterns Included | Left-Hand Diagonal; Right-Hand Diagonal |
| Shank Shape | Rectangle |
