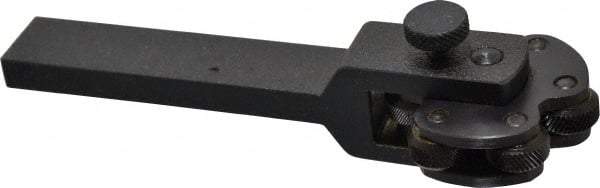

Value Collection - Neutral Cut, Diagonal, Diamond & Straight, 3/8" Wide 7/8" High x 5-1/2" Long Rectangle Shank, Revolving-Head Bump Knurlers - 6 Knurls Required (Included), 5/8" Diam x 5/16" Wide Face, 7/32" Hole Diam, Series KT
Item #: 08653511
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Revolving-head bump knurlers are designed with three pairs of rotating heads. They are self-centering and hold three knurl wheels in coarse, medium and fine grades. They are best used in smaller productions not continuously large runs.
| Product Specifications | |
|---|---|
| Knurler Type | Revolving-Head |
| Cutting Direction | Neutral |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (Inch) | 7/8 |
| Shank Length (Inch) | 5-1/2 |
| Knurl Diameter (Inch) | 5/8 |
| Knurl Face Width (Inch) | 5/16 |
| Knurl Hole Diameter (Inch) | 7/32 |
| Knurl Hole Diameter (mm) | 6.30 |
| Number of Knurls Required | 6 |
| Knurl Series | KT |
| Modular | No |
| Includes Knurl Wheels | Yes |
| Pattern | Diagonal; Diamond; Straight |
| Knurl Patterns Included | Left-Hand Diagonal; Right-Hand Diagonal; Straight |
| Shank Shape | Rectangle |
