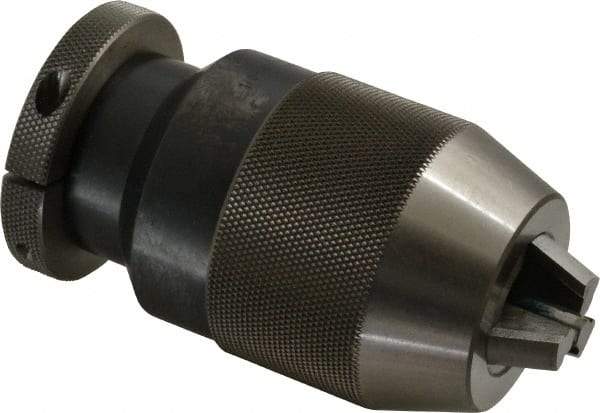

Albrecht - JT6, 1/8 to 5/8" Capacity, Steel Tapered Mount Drill Chuck - Keyless, 2-1/4" Sleeve Diam, 3-3/4" Open Length
Item #: 08591232
Brand: Albrecht
Model #: 70120
Exact Tooling IR#: 04
Features and Benefits
Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
Keyless chucks are engineered to quickly loosen and tighten a tool on the chuck collar of the drill, either by manual operation or when torque is applied. Rotating the chuck collar in a counterclockwise direction will loosen the tool.
Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 15.88 |
| Maximum Drill Chuck Capacity (Inch) | 5/8 |
| Minimum Drill Chuck Capacity (mm) | 3.18 |
| Minimum Drill Chuck Capacity (Inch) | 1/8 |
| Mount Type | Tapered Mount |
| Mounting Size | JT6 |
| Key Style | Keyless |
| Bearing Type | Ball Bearing |
| Material | Steel |
| Maximum RPM | 4000 |
| Closed Length (Decimal Inch) | 4.3100 |
| Open Length (Decimal Inch) | 3.7500 |
| Sleeve Diameter (Decimal Inch) | 2.2500 |
