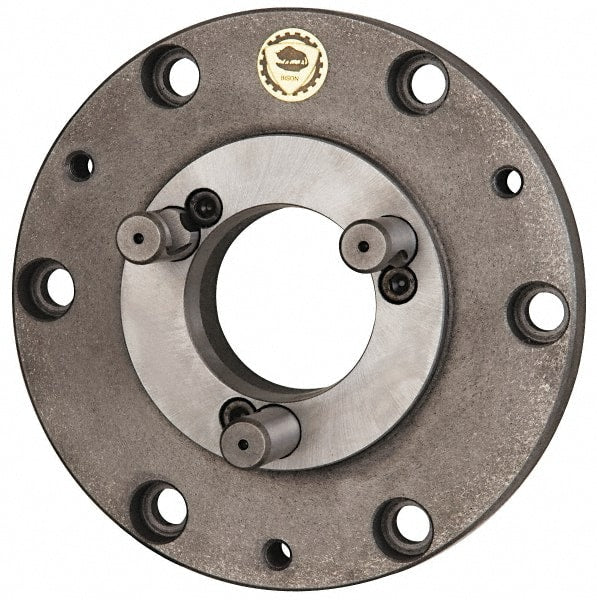

Adapter Back Plate for 8″ Diam Self Centering Lathe Chucks D1-5 Mount, 3.13″ Through Hole Diam, 7.89″ OD, 0.71″ Flange Height
Item #: 08567356
Brand: Bison
Model #: 7-878-085
Product Specifications
| Nominal Chuck Size | 8 in |
| Mount Type | D1-5 |
| Spindle Nose Type | D Series |
| Chuck Compatibility | Self-Centering Chucks |
| Through-hole Diameter | 3.13 in |
| Chuck Diameter Compatibility | 8 in |
| Through-Hole Diameter (Decimal Inch) | 3.1300 |
| Chuck Diameter Compatibility (Inch) | 8 in; 8 |
| Chuck Diameter Compatibility (mm) | 8 in |
| Outside Diameter (Inch) | 7.89 in |
| Outside Diameter (Decimal Inch) | 7.8900; 7.89 in |
| Flange Height (Decimal Inch) | 0.71 in |
