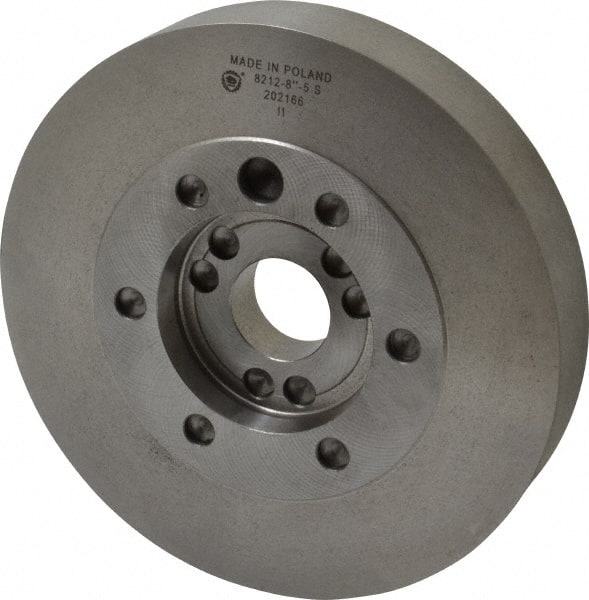

Adapter Back Plate for 8″ Diam Independent & Self Centering Lathe Chucks A1/A2-5 Mount, 2.17″ Through Hole Diam, 3-1/4″ ID, 7.99″ OD, 1-1/2″ Flange Height
Item #: 08566044
Brand: Bison
Model #: 7-873-085
Product Specifications
| Nominal Chuck Size | 8 in |
| Mount Type | A1/A2-5 |
| Spindle Nose Type | A Series |
| Chuck Compatibility | Independent Chucks; Self-Centering Chucks |
| Through-hole Diameter | 2.17 in |
| Chuck Diameter Compatibility | 8 in |
| Through-Hole Diameter (Decimal Inch) | 2.1700 |
| Chuck Diameter Compatibility (Inch) | 8 in; 8 |
| Chuck Diameter Compatibility (mm) | 8 in |
| Inside Diameter (Decimal Inch) | 3.2500 |
| Outside Diameter (Inch) | 7.99 in |
| Outside Diameter (Decimal Inch) | 7.9900; 7.99 in |
| Flange Height (Decimal Inch) | 1.5 in |
