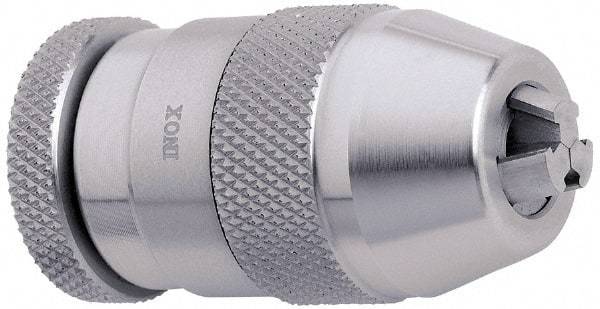

Accupro - 3/8-24, 1/64 to 1/4" Capacity, Threaded Mount Stainless Steel Drill Chuck - Keyless, 33.6mm Sleeve Diam, 62.3mm Open Length
Item #: 08402208
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Threaded mount drill chucks have an internal thread for securing to a power drill spindle or a threaded arbor.
Keyless chucks are engineered to quickly loosen and tighten a tool on the chuck collar of the drill, either by manual operation or when torque is applied. Rotating the chuck collar in a counterclockwise direction will loosen the tool.
Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 6.35 |
| Maximum Drill Chuck Capacity (Inch) | 1/4 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.2500 |
| Minimum Drill Chuck Capacity (mm) | 0.40 |
| Minimum Drill Chuck Capacity (Inch) | 1/64 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0120 |
| Mount Type | Threaded Mount |
| Mounting Size | 3/8-24 |
| Key Style | Keyless |
| Bearing Type | Ball Bearing |
| Material | Stainless Steel |
| Closed Length (mm) | 69.60 |
| Open Length (mm) | 62.30 |
| Sleeve Diameter (mm) | 33.60 |
