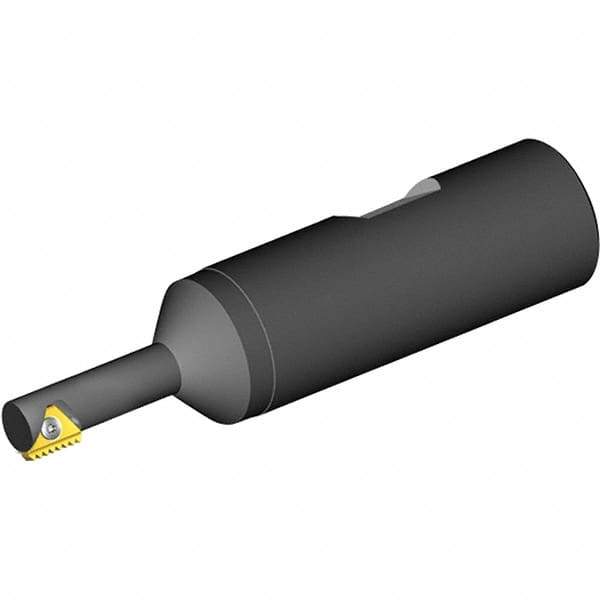

Vargus - 0.354" Cut Diam, 0.47" Max Depth of Cut, 1/2" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 6, 6mm Insert Size, 1 Insert, Toolholder Style TMMC, 2.717" OAL
Item #: 08169914
Brand: Vargus
Model #: 67635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3540 |
| Maximum Hole Depth (Decimal Inch) | 0.4700 |
| Insert Style | 6 |
| Insert Size (mm) | 6.00 |
| Toolholder Style | TMMC |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 2.7170 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.2700 |
