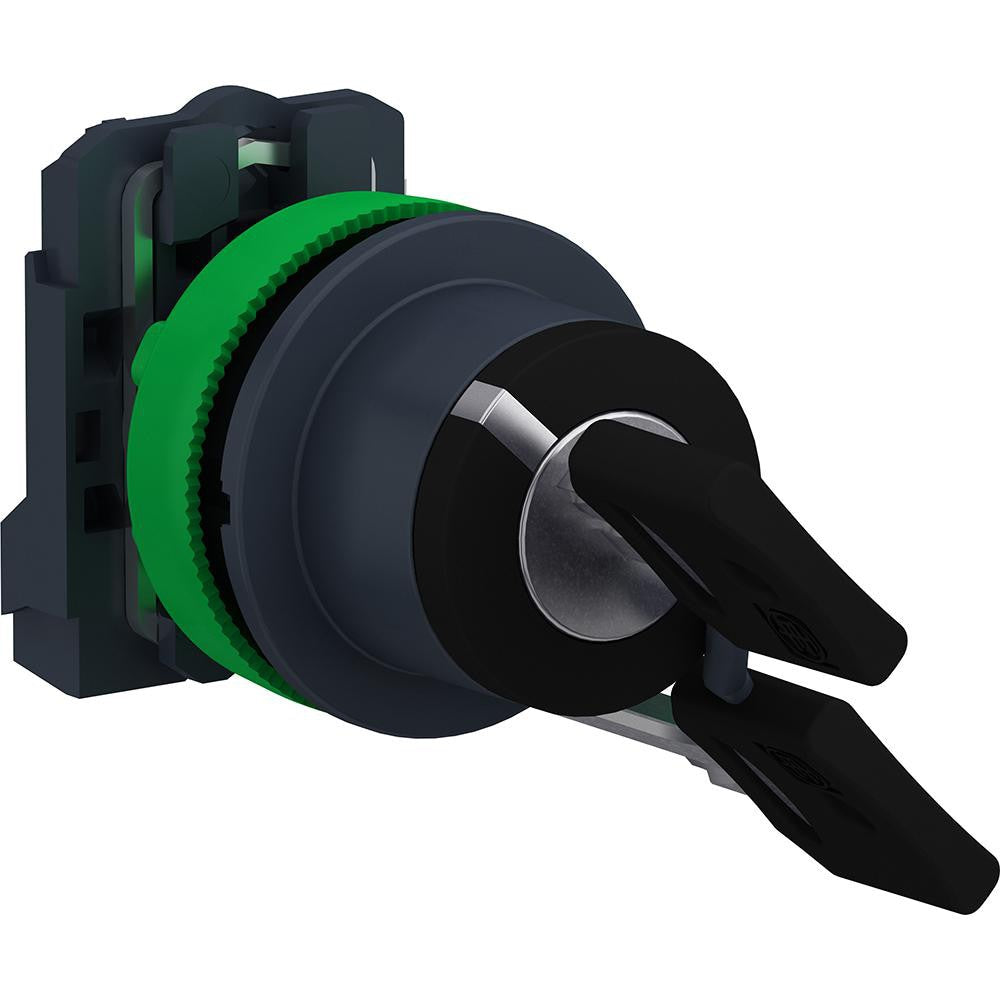

Selector Switches; Switch Type: Selector Switch with Contact Blocks; Operator Type: Key; Operation Type: Maintained (MA); Selector Switch Type: Selector Switch with Contact Blocks; Operator Color: Black; Contact Configuration: NO; Voltage: 240.00, 600.00,
Item #: 88605845
Brand: Schneider Electric
Model #: XB5FG21
Product Specifications
| Switch Type | Selector Switch with Contact Blocks |
| Operator Type | Key |
| Operation Type | Maintained (MA) |
| Selector Switch Type | Selector Switch with Contact Blocks |
| Operator Color | Black |
| Contact Configuration | NO |
| Voltage | 240.00; 600.00; 120.00 |
| Amperage | 10.0000 A |
| Number Of Contact Blocks | 1 |
| Operates in Position | Left; Right |
| Key Removal Position | Left |
| Operator Illumination | Non-Illuminated |
| Bezel Material | Plastic |
| Bezel Color | Black |
| Head Shape | Round |
| Mount Type | Panel |
| Mounting Orientation | Horizontal or Vertical |
| Resistance Features | Water-Resistant; Dust-Resistant |
| Ingress Protection Rating | IP66; IP69K; IP67 |
| Hole Diameter (Mm) ( - 0 Decimals) | 30.0000 |
| Terminal Type | Screw Clamp |
| Standards | CSA C22-2 No. 14; IEC 60529; UL 508 |
| Mounting Type | Flush Mount |
| Number Of Positions | 2 |
| Nema Rating | 13; 4X |
| UNSPSC Code | 39122217 |
