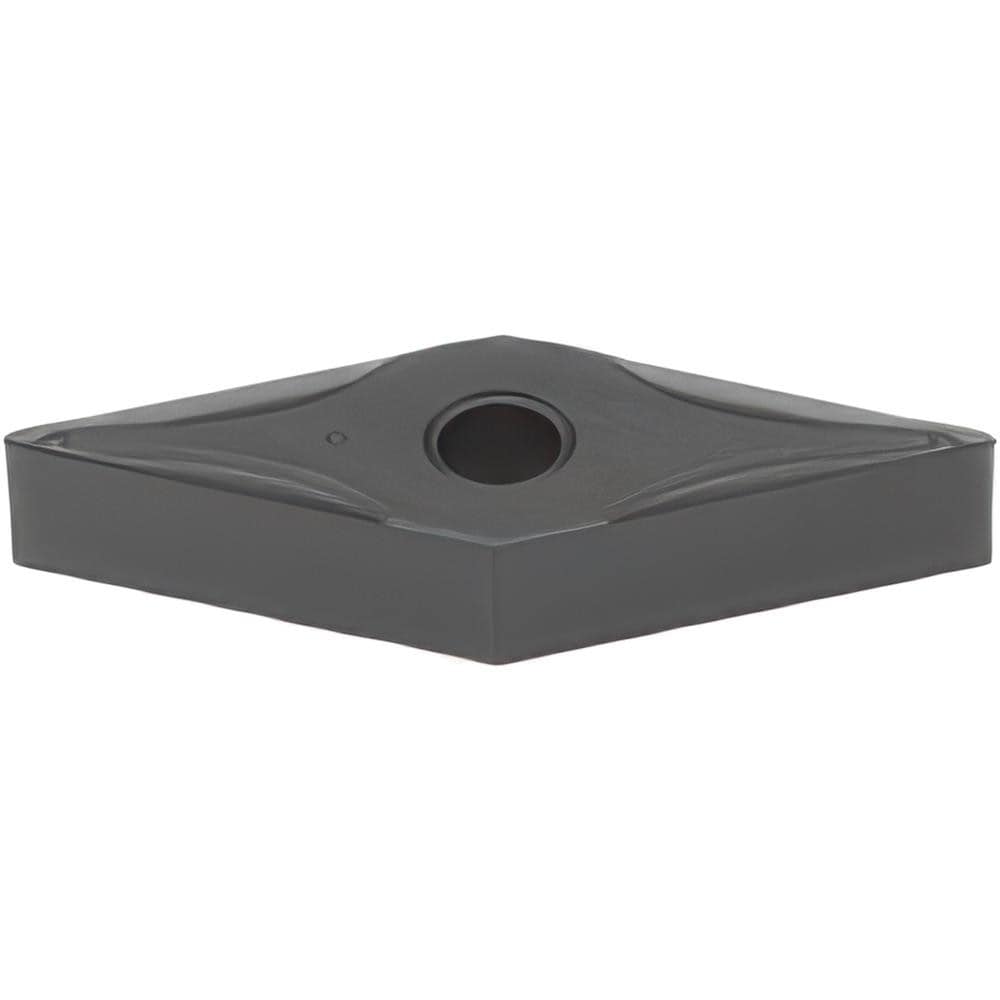

Turning Insert: VNMG332MRPH5115, Carbide
Item #: 65717811
Brand: TMX
Model #: 112-1279-L7
Product Specifications
| ANSI Insert Code | VNMG332 |
| ISO Insert Code | VNMG160408 |
| Insert Style | VNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35 |
| Manufacturer Grade | PH5115 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VNMG |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Maximum Depth of Cut (Decimal Inch) | 0.2178 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | VNMG 160408-MR |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | VNMG 332-MR |
| Material Grade | P25; K30; M20; M10; P10; K15 |
| Coating Classification | CVD |
| Chip Breaker | MR |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
| ANSI Insert Code | VNMG332 |
| ISO Insert Code | VNMG160408 |
| Insert Style | VNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35 |
| Manufacturer Grade | PH5115 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VNMG |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Maximum Depth of Cut (Decimal Inch) | 0.2178 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | VNMG 160408-MR |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | VNMG 332-MR |
| Material Grade | P25; K30; M20; M10; P10; K15 |
| Coating Classification | CVD |
| Chip Breaker | MR |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
| MSC Part # | 65717811 |
| Mfr Part # | 112-1279-L7 |
