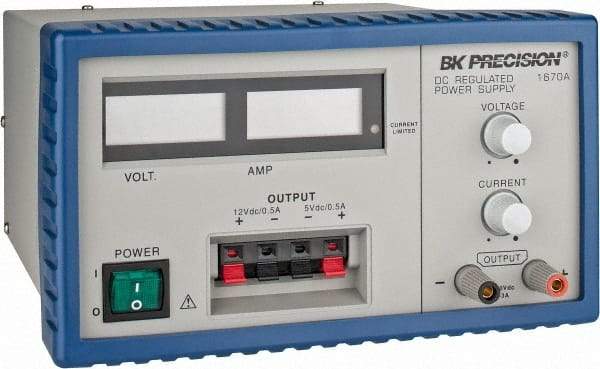

B&K Precision - 165 Watt, 0 to 3 Amp, 0 to 30V, 12V, 5V Output, Power Supply - 3 Outputs, 8-1/2 Inch Wide x 9-1/2 Inch Deep x 4.9 Inch High, 32 to 104°F, 3 Digit, LCD Display
Item #: 05884341
Brand: B&K Precision
Model #: 1670A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Type | Benchtop |
| Output Wattage | 165 |
| Maximum Input Voltage | 240 VAC |
| Minimum Input Voltage | 110 VAC |
| Number of Outputs | 3 |
| Output Voltage | (A) 0-30V, (B) 12V, (C) 5V |
| Output Amperage | 0-3 |
| Maximum Operating Temperature (F) | 104 |
| Minimum Operating Temperature (F) | 32 |
| Status Indicator | 3-digit LCD Display |
| Overall Height (mm) | 124 |
| Overall Height (Decimal Inch) | 4.9000 |
| Overall Width (mm) | 216 |
| Overall Width (Decimal Inch) | 8-1/2 |
| Overall Depth (mm) | 242 |
| Overall Depth (Decimal Inch) | 9-1/2 |
| Protection Features | Current Limiting Indicator; Overload Protection; Reverse Polarity Protection; Short Circuit Protection |
| Standards Met | cUL Certified |
