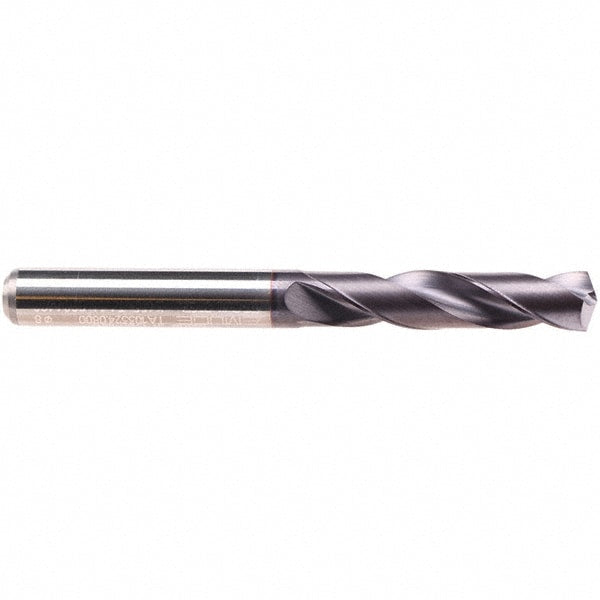

Brand: Emuge / Part #: TA209744.0953
Item #: 94325024
Brand: Emuge
Model #: TA209744.0953
Product Specifications
| Drill Bit Size (Inch) | 3/8 |
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Drill Bit Size (mm) | 9.53 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiALN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Self Centering |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 89.0000 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.0000 |
| Series | 3XD Solid |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Number of Margins | 1.000 |
| Drill Length Type | Stub |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.000 |
| Drill Point Length (mm) | 1.90 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (Decimal Inch) | 1.8504 |
| Flute Length (mm) | 47.00 |
| Drill Bit Grade | High Performance |
| Specification Number | DIN 6537L |
| Specification Designation | DIN |
| Material Grade | Submicron |
