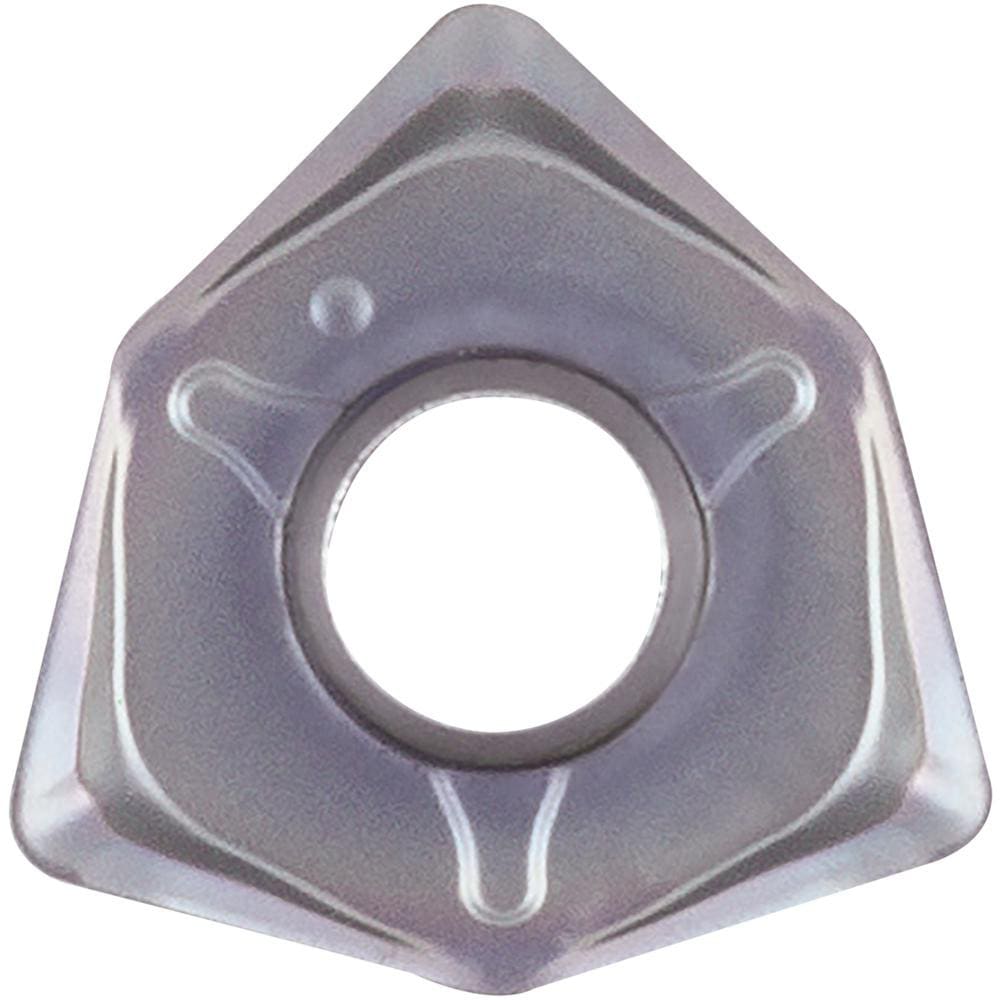

Milling Insert: WNMU080608EN-GM PR1825, Carbide
Item #: 67266700
Brand: Kyocera
Model #: TLT00139
Product Specifications
| Insert Style | WNMU |
| Insert Size | 080608 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2618 |
| Thickness (mm) | 6.6500 |
| Coating/Finish | MEGACOAT NANO EX |
| Inscribed Circle (Decimal Inch) | 0.5520 |
| Inscribed Circle (mm) | 14.02 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | MFWN Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.2000 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Rake | Negative |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | WNMU080608ENGMPR1825 |
| Iso Code | WNMU080608EN-GM |
| Manufacturers Catalog Number | WNMU080608ENGMPR1825 |
| Chip Breaker | EN-GM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Multi-Use Tool | Yes |
| Insert Style | WNMU |
| Insert Size | 080608 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2618 |
| Thickness (mm) | 6.6500 |
| Coating/Finish | MEGACOAT NANO EX |
| Inscribed Circle (Decimal Inch) | 0.5520 |
| Inscribed Circle (mm) | 14.02 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | MFWN Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.2000 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Rake | Negative |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | WNMU080608ENGMPR1825 |
| Iso Code | WNMU080608EN-GM |
| Manufacturers Catalog Number | WNMU080608ENGMPR1825 |
| Chip Breaker | EN-GM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Multi-Use Tool | Yes |
| MSC Part # | 67266700 |
| Mfr Part # | TLT00139 |
| Country of Origin Country of Origin is subject to change | Japan |
