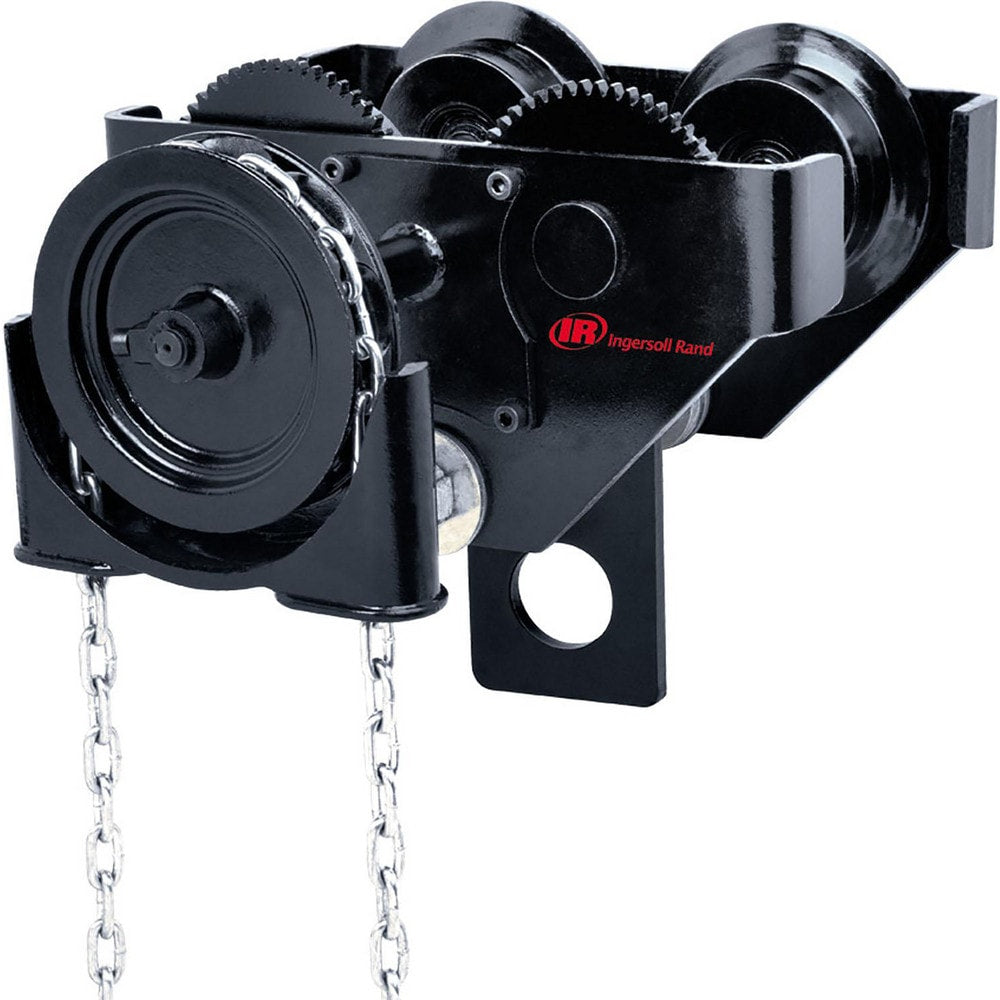

Trolleys; Type: Manual Geared Trolley; Maximum Flange Width: 13; Minimum Flange Width: 7.0; Minimum Radius (Inch): 83.0000
Item #: 75562603
Brand: Ingersoll Rand
Model #: GT100-12-20
Product Specifications
| Type | Manual Geared Trolley |
| Maximum Flange Width | 13 |
| Minimum Flange Width | 7.0 |
| Minimum Radius (Inch) | 83.0000 |
| Flange Width (Inch) | 7 to 13 |
| Body Material | Steel |
| Hoist Mount Type | Eye |
| Maximum I-beam Height | 10 |
| Beam Shape | Flat & Tapered |
| Color | Black |
| Wheel Diameter (Inch) | 5.9400 |
| Wheel Material | Cast Iron |
| Standards | ASME; CMAA; ANSI |
| Number Of Wheels | 4.000 |
| Finish | Painted |
| Additional Information | Universal Tread Fits Flat or Taperered Beams |
| Type of Tread | Universal Tread |
| Length (Decimal Inch - 4 Decimals) | 17.9000 |
| Load Capacity (Tons) | 10 |
| Load Capacity (Lb. - 3 Decimals) | 22000.000 |
| Width (Decimal Inch - 4 Decimals) | 20.8000 |
| UNSPSC Code | 24101706 |
| Country of Origin | China |
