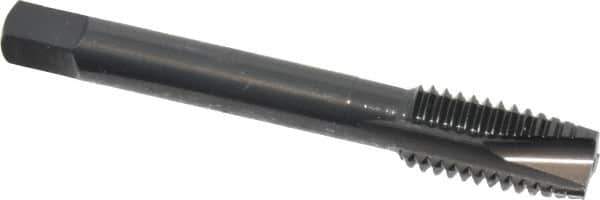

OSG - 1/2-13 UNC, 3 Flute, Oxide Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 3-3/8" OAL, 1-21/32" Thread Length, 0.367" Shank Diam, 2B Class of Fit, Series 288
Item #: 04620910
Brand: OSG
Model #: 2886201
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-13 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Finish/Coating | Oxide |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 3-3/8 |
| Oversize | No |
| Thread Standard | UNC |
| Thread Length (Inch) | 1-21/32 |
| Series/List | 288 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Size (Decimal Inch) | 0.2750 |
| Material Application | Aluminum; Carbon Steel |
