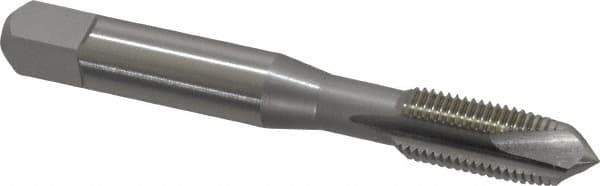

OSG - 3/8-24 UNF, 3 Flute, Bright Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 2-15/16" OAL, 1-1/4" Thread Length, 0.381" Shank Diam, 2B Class of Fit, Series 288
Item #: 04620860
Brand: OSG
Model #: 2886100
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-24 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Finish/Coating | Bright |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 2-15/16 |
| Oversize | No |
| Thread Standard | UNF |
| Thread Length (Inch) | 1-1/4 |
| Series/List | 288 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Size (Decimal Inch) | 0.2860 |
| Material Application | Aluminum; Carbon Steel |
