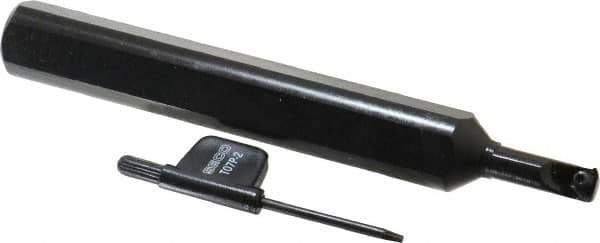

Seco - Internal Thread, Right Hand Cut, 0.707" Shank Width x 0.691" Shank Height Indexable Threading Toolholder - 5-1/2" OAL, 09NR Insert Compatibility, SN Toolholder, Series Snap Tap
Item #: 04343455
Brand: Seco
Model #: 86856
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7070 |
| Shank Height (Decimal Inch) | 0.6910 |
| Overall Length (Decimal Inch) | 5.5000 |
| Insert Compatibility | 09NR |
| Series | Snap Tap |
| Toolholder Style | SN |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.2000 |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Head Length (Inch) | 3/4 |
| Head Length (Decimal Inch) | 0.7500 |
| Minimum Bore Diameter (Decimal Inch) | 0.4000 |
| Insert Inscribed Circle (Inch) | 7/32 |
| Toolholder Material | Steel |
