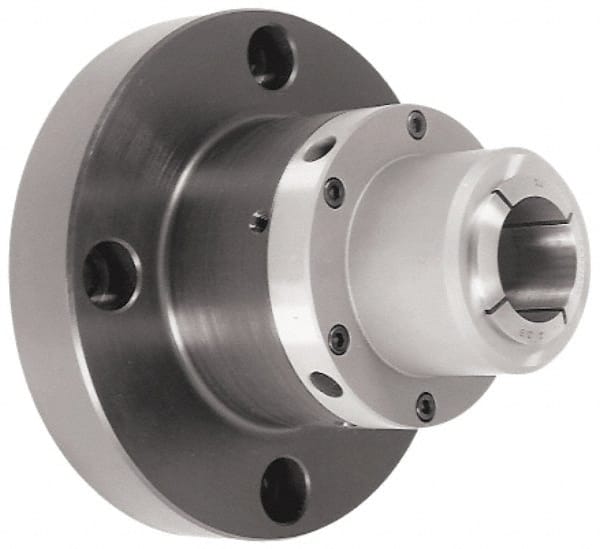

1-3/8″ Max Capacity A-8 Spindle 2J Lathe Collet Chuck Drawbar Actuator, 2-1/2″ Nose Diam, 4.97″ OAL, 0.0005″ TIR, 3.437″ Projection
Item #: 03705415
Brand: Dunham Tool
Model #: DTC2JA8
Product Specifications
| Collet System | 2J |
| Spindle Size | A-8 |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-3/8 |
| Projection (Decimal) | 3.4370 |
| Overall Length (Decimal) | 4.97 in; 4.9700 |
| Through Coolant | Nonthrough Coolant |
| Nose Diameter (Decimal) | 2.5000 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0005 |
