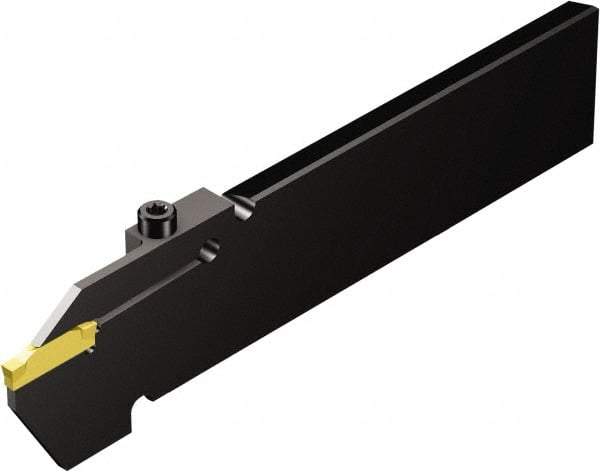

Sandvik Coromant - 32mm Max Depth of Cut, Right Hand Cut, Indexable Grooving Blade - 8.33mm Insert Width, H Seat Size, R/LF123..B1 (C) Insert Style, Series CoroCut 1-2
Item #: 03640513
Brand: Sandvik Coromant
Model #: 5740994
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Maximum Insert Width (mm) | 8.33 |
| Maximum Insert Width (Decimal Inch) | 0.3280 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Series | CoroCut 1-2 |
| Maximum Workpiece Diameter (mm) | 64.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5197 |
| Blade Height (mm) | 31.90 |
| Blade Height (Decimal Inch) | 1.2559 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Manufacturers Catalog Number | 5740994 |
| Insert Style | R/LF123..B1 (C) |
| Insert Seat Size | H |
| Cartridge Size | 25 |
| Complete Insert Compatibility | N123H2-0400-0004-TF |
