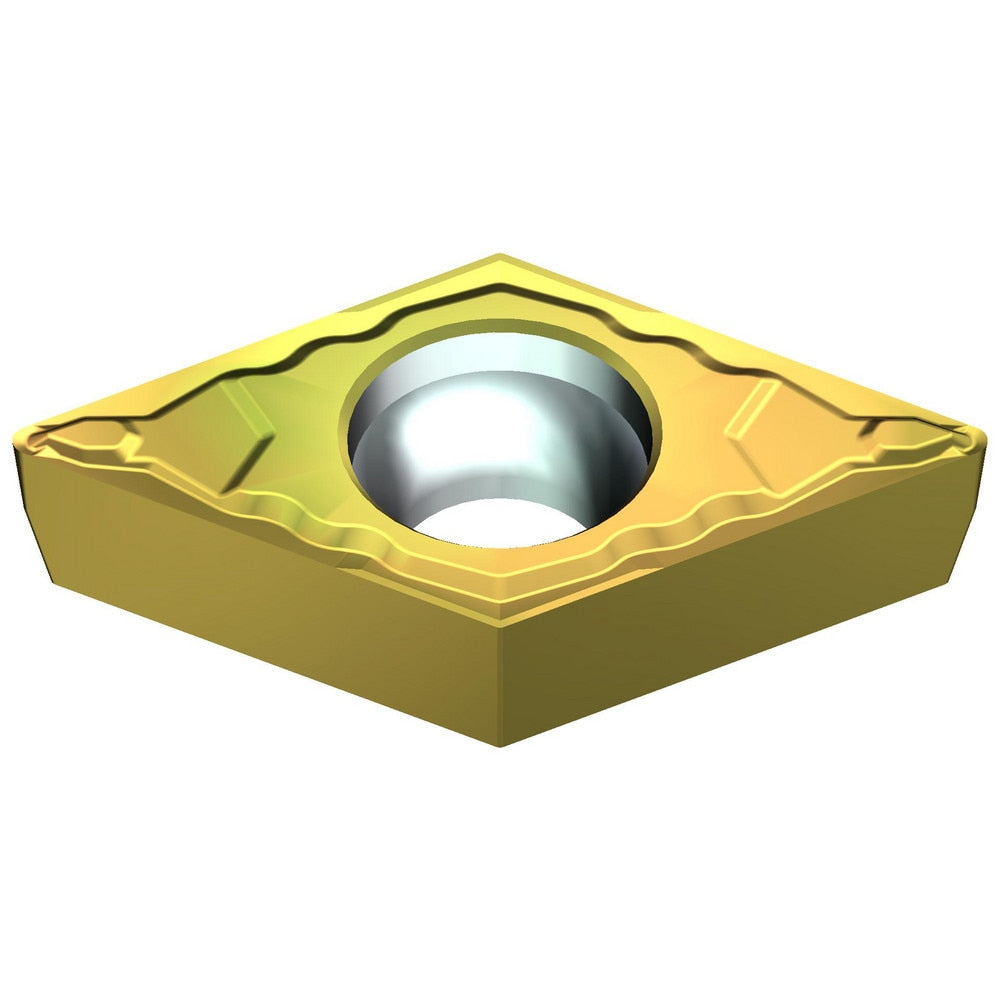

Turning Insert: DCMT3251ELU T2500Z, Cermet
Item #: 23219306
Brand: Sumitomo
Model #: 19U5BUW
Product Specifications
| ANSI Insert Code | DCMT32.51 |
| ISO Insert Code | DCMT |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | T2500Z |
| Coating/Finish | AlN |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | T2500Z |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Cermet |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Hole Diameter (Decimal Inch) | 0.1733 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4567 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | P; K |
| Chip Breaker | ELU |
| ANSI Size Code | 32.51 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
