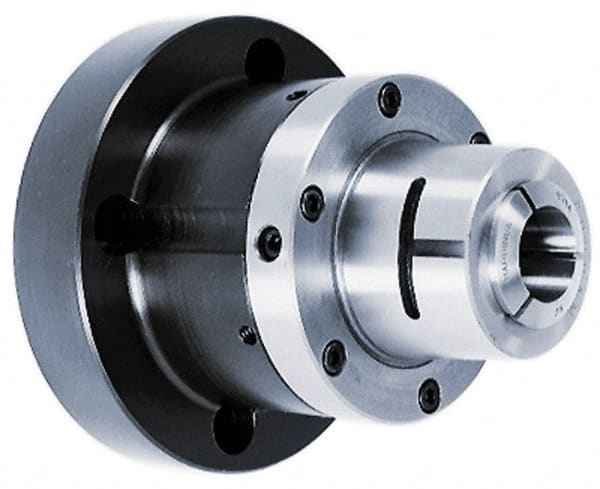

1-5/8″ Max Capacity A-4 Spindle 16C Lathe Collet Chuck Drawbar Actuator, 2.8″ Nose Diam, 6.16″ OAL, 0.0005″ TIR, 3.437″ Projection
Item #: 03389319
Brand: Dunham Tool
Model #: DTC-16C-A4
Product Specifications
| Collet System | 16C |
| Spindle Size | A-4 |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-5/8 |
| Projection (Decimal) | 3.4370 |
| Overall Length (Decimal) | 6.16 in; 6.1600 |
| Through Coolant | Nonthrough Coolant |
| Nose Diameter (Decimal) | 2.8000 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0005 |
