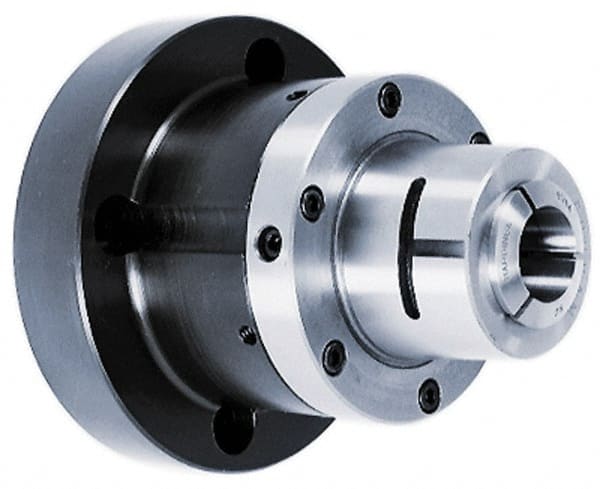

1-1/16″ Max Capacity A-6 Spindle 5C Lathe Collet Chuck Drawbar Actuator, 2.19″ Nose Diam, 5″ OAL, 0.0005″ TIR, 3.437″ Projection

1-1/16″ Max Capacity A-6 Spindle 5C Lathe Collet Chuck Drawbar Actuator, 2.19″ Nose Diam, 5″ OAL, 0.0005″ TIR, 3.437″ Projection


Item #: 03389293
Brand: Dunham Tool
Model #: DTC-5C-THD-A6

Product Specifications

Collet System 5C
Spindle Size A-6
Actuator Type Drawbar
Maximum Collet Capacity (Inch) 1-1/16
Projection (Decimal) 3.4370
Overall Length (Decimal) 5.0000; 5 in
Through Coolant Nonthrough Coolant
Nose Diameter (Decimal) 2.1900
PSC Code 5136
TIR (Decimal Inch) 0.0005
$871.01
